Fan, Fan Motor, and Shroud Removal and Installation: Installation

Assemble the fan shrouds.

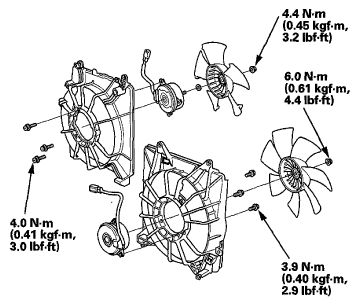

Fig 1: Disassembled View Of Fan Shrouds With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the radiator fan shroud assembly (A) onto the A/C condenser fan shroud side, then install the A/C condenser fan shroud assembly (B).

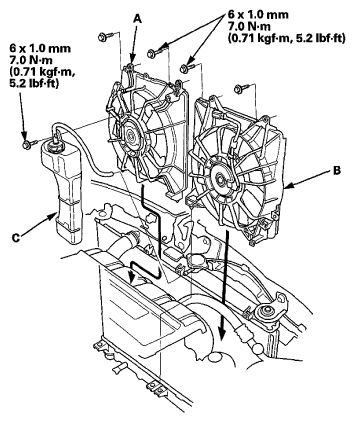

Fig 2: Coolant Reservoir, A/C Condenser Fan Shroud Assembly And Radiator Fan Shroud Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the coolant reservoir (C).
Connect the fan motor connectors (A) and the harness clamps (B).

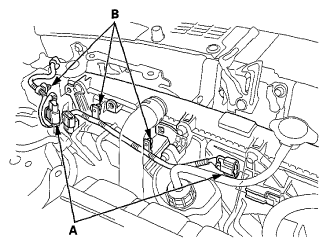

Fig 3: Identifying Fan Motor Connectors And Harness Clamps
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the resonator chamber joint (A) and the intake air tube (B)
NOTE: When tightening the screw (C) of the hose band, align the edge of the hose band (D) with the mark (E) painted on the hose band. If you tighten the screw over the mark, replace the hose band.

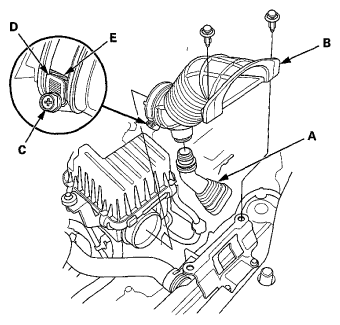

Fig 4: Identifying Resonator Chamber Joint, Intake Air Tube, Hose Bands And Mounting Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Raise the vehicle on the lift.
Install the A/C compressor clutch connector (A) to the clamp, then install the harness clamps (B).

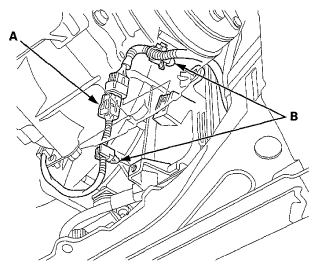

Fig 5: Identifying A/C Compressor Clutch Connector And Harness Clamps
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the splash shield (see SPLASH SHIELD REPLACEMENT ).
Lower the vehicle on the lift.
