Drive Belt Inspection

  1. Inspect the belt for cracks or damage.
    NOTE: If the belt is cracked or damaged, replace it (see DRIVE BELT REPLACEMENT  ).
  2. Check the position of the auto-tensioner indicator (A) is within the standard range (B) as shown. If it is out of the standard range, replace the drive belt (see DRIVE BELT REPLACEMENT  ), then check the auto-tensioner indicator position.

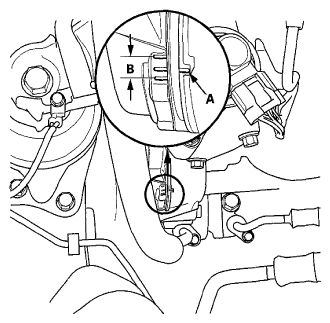

    Fig 1: Identifying Auto-Tensioner Position Within Standard Range
    G06949668Courtesy of AMERICAN HONDA MOTOR CO., INC.
