Drive Belt Auto-Tensioner Replacement

  1. Remove the drive belt (see DRIVE BELT REPLACEMENT  ).
  2. Remove the auto-tensioner.

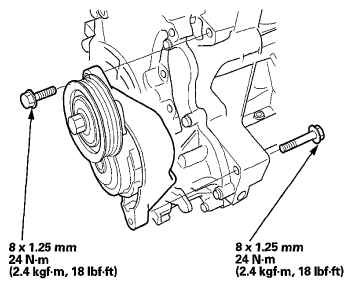

    Fig 1: Auto-Tensioner Mounting Bolts With Torque Specification
    G06949674Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the auto-tensioner in the reverse order of removal.
