Passenger's side

  1. Remove the passenger's dashboard panel (see PASSENGER'S DASHBOARD PANEL REMOVAL/INSTALLATION  ).
  2. Remove the passenger's side defogger vent trim (A).
    1. Pry the rear edge of the trim to detach the hooks (B) with the appropriate trim tool.
    2. Pull the panel rearward.

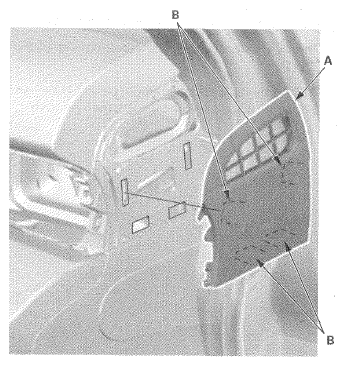

      Fig 1: Identifying Passenger's Side Defogger Vent Trim And Hooks
      G06953421Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the trim in the reverse order of removal, and push the hooks into place securely.
