Passenger's Dashboard Panel Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to scratch the dashboard or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the passenger's dashboard panel (A).
1. Insert the appropriate trim tool into the notch (B) in the panel, and pull out the panel partially to detach the clips (C).
2. Gently pull out along the upper edge of the panel to detach the clips (D) and the hook (E).
3. Gently pull out along the lower edge of the panel to detach the clip (F) and the hook (G).

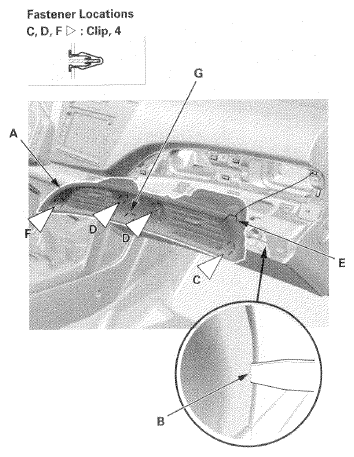

  Fig 1: Identifying Passenger's Dashboard Panel With Clips And Hooks
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the panel in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and hooks into place securely.
