Intermediate Shaft Removal
- Drain the transmission fluid, then reinstall the drain plug with a new sealing washer (see
TRANSMISSION FLUID INSPECTION AND REPLACEMENT
).
- Remove the right driveshaft (see DRIVESHAFT REMOVAL
).
- Remove the heat shield (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the flange bolt (A) and the two dowel bolts (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

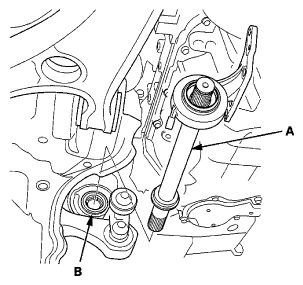

- Remove the intermediate shaft (A) from the differential. Hold the intermediate shaft horizontally until it is clear of the differential to prevent damaging the oil seal (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
