Driveshaft Removal

Special Tools Required

• Ball Joint Remover, 28 mm 07MAC-SL0A202
• Ball Joint Thread Protector, 14 mm 071AF-S3VA000

1. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
2. Remove the front wheel.
3. Pry up the stake (A) on the spindle nut (B), then remove the nut.
   Fig 1: Identifying Stake On Spindle Nut

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the splash shield (see SPLASH SHIELD REPLACEMENT ).
5. Drain the transmission fluid, then reinstall the drain plug with a new sealing washer:
   • Manual transmission (see TRANSMISSION FLUID INSPECTION AND REPLACEMENT )
   • CVT (see CVT FLUID REPLACEMENT )
6. Remove the lock pin (A) from the lower arm ball joint, then remove the castle nut (B). Separate the ball joint from the knuckle using the 14 mm ball joint thread protector and the 28 mm ball joint remover (see BALL JOINT REMOVAL ).
   Fig 2: Removing Lock Pin And Castle Nut Using Special Tool

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Pull the knuckle outward, and separate the outboard joint from the front hub using a soft face hammer.
   Fig 3: Removing Outboard Joint From Front Hub Using Soft Face Hammer

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Left driveshaft: Pry the inboard joint (A) from the differential using a pry bar. Remove the driveshaft as an assembly.
   NOTE:

   • Do not pull on the driveshaft (B), or the inboard joint may come apart. Pull the inboard joint straight out to avoid damaging the oil seal.
   • Be careful not to damage the oil seal or the end of the inboard joint with the pry bar.

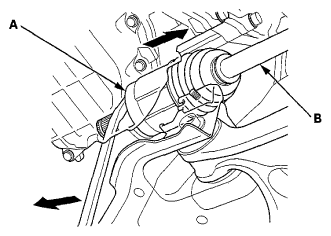

     Fig 4: Prying Inboard Joint From Differential Using Pry Bar

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Right driveshaft: Drive the inboard joint (A) off of the intermediate shaft using a drift punch and a hammer (M/T model). Pry the inboard joint (B) from the differential using the pry bar (CVT model). Remove the driveshaft as an assembly.
   NOTE:

   • Do not pull on the driveshaft (C) or the inboard joint may come apart. Pull the inboard joint straight out to avoid damaging the oil seal.
   • Be careful not to damage the oil seal or the end of the inboard joint with the drift punch or the pry bar.

   M/T model

   Fig 5: Removing Inboard Joint Of Intermediate Shaft Using Drift Punch (M/T Model)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   CVT model

   Fig 6: Prying Inboard Joint From Differential Using Pry Bar (CVT Model)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Remove the set ring (A) from the inboard joint (except M/T model right driveshaft).
    Fig 7: Identifying Set Ring Of Inboard Joint

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Remove the set ring (A) from the intermediate shaft (M/T model).
    Fig 8: Identifying Set Ring Of Intermediate Shaft

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
