Rear Brake Disc Replacement

NOTE: Keep grease away from the brake disc and brake pads.
  1. Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
  2. Remove the rear wheel.
  3. Release the parking brake lever fully.
  4. Remove the caliper body and the brake pads from the caliper bracket (see REAR BRAKE PAD INSPECTION AND REPLACEMENT  ).
  5. Remove the caliper bracket (A) from the knuckle.

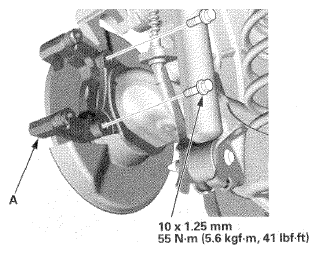

    Fig 1: Caliper Bracket With Torque Specifications
    G06953151Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the brake disc flathead screws (A).

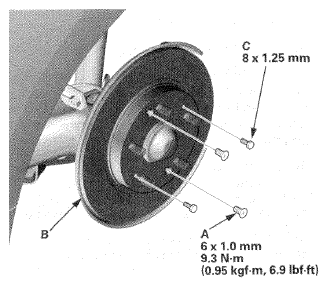

    Fig 2: Brake Disc Flathead Screws, Brake Disc And Bolts With Torque Specifications
    G06953152Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the brake disc (B) from the hub bearing unit.
    NOTE: If the brake disc is stuck to the hub bearing unit, thread two 8 x 1.25 mm bolts (C) into the brake disc to push it away from the hub bearing unit. Turn each bolt 90 degrees at a time to prevent the brake disc from binding.
  8. Install the brake disc in the reverse order of removal, and note these items:
    • Adjust the parking brake (see ADJUSTMENT  ).
    • Before installing the brake disc, clean the mating surfaces between the hub bearing unit and the inside of the brake disc.
  9. Inspect the brake disc runout (see RUNOUT  ).
  10. Clean the mating surfaces between the brake disc and the inside of the wheel, then install the rear wheel.
