Parking Brake Lever Replacement

  1. Release the parking brake lever fully.
  2. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. Disconnect the parking brake switch connector (A) from the parking brake switch (B).

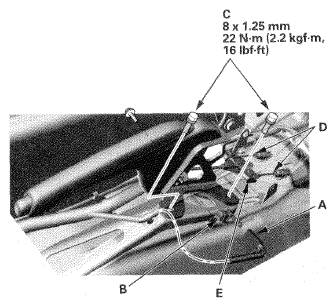

    Fig 1: Parking Brake Switch Connector, Parking Brake Switch, Parking Brake Lever Mount Bolts And Parking Brake Cables With Torque Specifications
    G06953164Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the parking brake lever mount bolts (C).
  5. Disconnect the parking brake cables (D) from the equalizer (E).
  6. Remove the parking brake switch.
  7. Install the parking brake lever in the reverse order of removal.
  8. Adjust the parking brake (see ADJUSTMENT  ).
