Rear Wheelhouse Gusset Replacement

NOTE: Take care not to scratch the body or the related parts.
  1. Remove the rear side trim panel (see TRIM REMOVAL/INSTALLATION - CARGO AREA ).
  2. Remove the bolt and the nut, then remove the rear wheelhouse gusset (A).

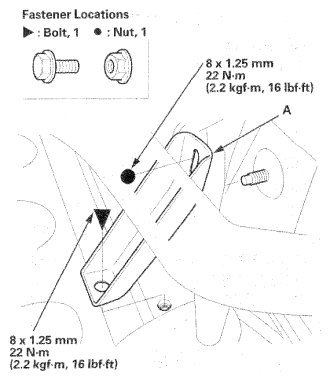

    Fig 1: Rear Wheelhouse Gusset With Bolt And Nut Torque Specifications
    G06953583Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the gusset in the reverse order of removal.
