Door Sash Outer Trim Replacement

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

1. Remove the door sash inner trim (see DOOR SASH INNER TRIM REPLACEMENT  ).
2. Remove the door sash outer trim (A).
   1. Remove the screws from inside the door.
   2. Pull up the trim to release the hooks (B) from the door.
   3. Release the lower edge of the trim from the door glass outer weatherstrip (C), then remove the trim.

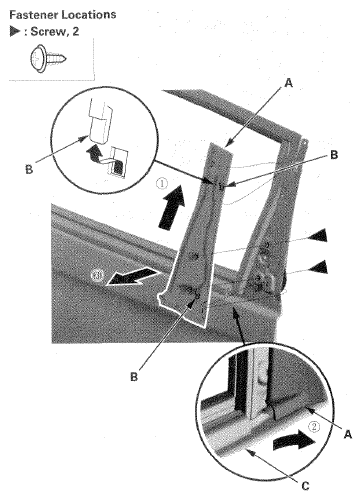

      Fig 1: Removing Door Sash Outer Trim

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the trim in the reverse order of removal, and push the hooks into place securely.
