Door Sash Inner Trim Replacement

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the door or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Lower the door glass fully.
Detach the clip and hooks (A), then remove the door sash inner trim (B).

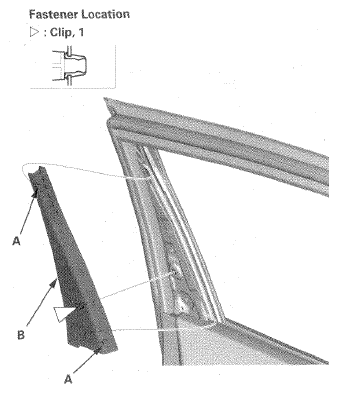

Fig 1: Identifying Door Sash Inner Trim With Clip And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and push the clip and the hooks into place securely.
