Door Glass Outer Weatherstrip Replacement
NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the door or the related parts.
- Remove the door sash outer trim (see DOOR SASH OUTER TRIM REPLACEMENT ).
- Lower the glass fully.

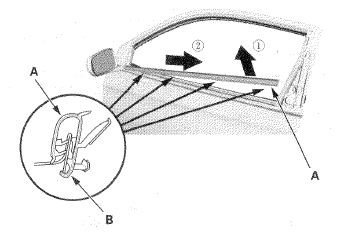

- Pull up the rear edge of the door glass outer weatherstrip (A), and detach the hooks (B). Slide the weatherstrip rearward, then remove it.
- Install the weatherstrip in the reverse order of removal, and note these items:
- Push the weatherstrip into place securely.
- Make sure that there is no clearance between the rear edge of the weatherstrip and the door sash outer trim.
