Rear Air Outlet Replacement

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the rear bumper (see FRONT AIR SPOILER REPLACEMENT ).
Detach the hooks (A), then remove the rear air outlet (B).
NOTE: Pull out the hook part with the appropriate trim tool, being careful not to damage the seal or the body area.

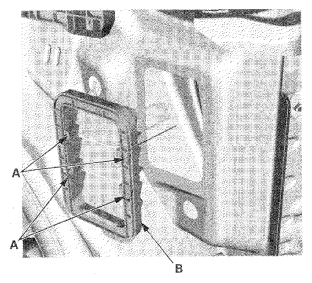

Fig 1: Identifying Rear Air Outlet And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the air outlet by pushing on the hook portions until the hooks snap into place.
Reinstall the rear bumper (see FRONT AIR SPOILER REPLACEMENT ).
