Front Air Spoiler Replacement

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the front bumper.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the screw and the clips securing the front air spoiler (A) from under the front bumper (B).
NOTE: To release the clips, pry up on the center pin at the notch (C).

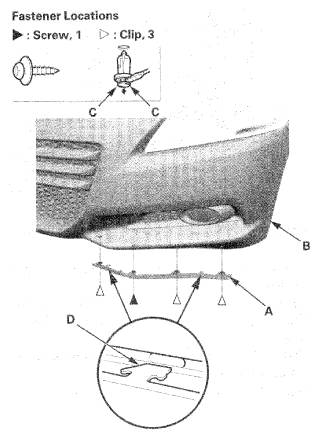

Fig 1: Identifying Front Air Spoiler, Front Bumper With Screw And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull back the front air spoiler to detach the hooks (D) and remove the spoiler.
Install the front air spoiler in the reverse order of removal:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
