Left side

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the body or the related parts.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the middle floor undercover (see MIDDLE FLOOR UNDERCOVER REPLACEMENT ).
Remove the bolt and the clips, then remove the left front floor undercover (A).
NOTE: To release the clips, pry up on the center pin at the notch (B).

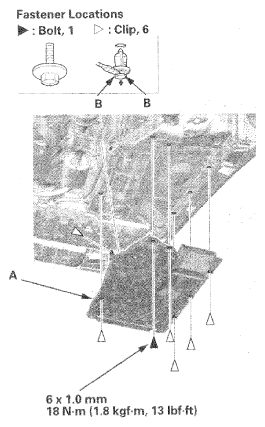

Fig 1: Left Front Floor Undercover And Notch With Bolt And Clip With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the left front floor undercover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
