Front Fender Fairing Replacement

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the body or the related parts.
  1. Remove the front inner fender as needed (see FRONT INNER FENDER REPLACEMENT  ).
  2. From the wheel arch, remove the clip and the maintenance plug (A).

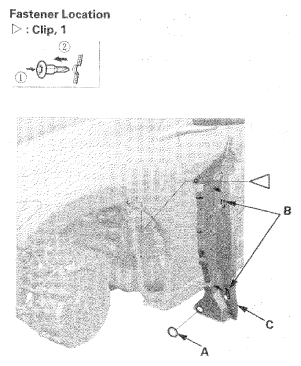

    Fig 1: Identifying Maintenance Plug, Hooks And Front Fender Fairing With Clips
    G06953571Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Release the hooks (B) of the front fender fairing (C) from the holes in the front fender, and pull the fender fairing out, then remove it.
  4. Install the front fender fairing in the reverse order of removal, and note these items:
    • If the clip is damaged or stress-whitened, replace it with a new one.
    • Before installing the clip, make sure the hooks (A) of the front fender fairing (B) is installed into the holes (C) in the front fender securely.
    • Push the clip into place securely.
      Fig 2: Identifying Front Fender Fairing And Hooks
      G06953572Courtesy of AMERICAN HONDA MOTOR CO., INC.
