Ambient Light Test/Replacement

NOTE: The ambient light is built into the interior light switch.
  1. Remove the individual map light (see INDIVIDUAL MAP LIGHT TEST/REPLACEMENT  ).
  2. Disconnect the interior light switch 10P connector (A) and the map light 3P connector (B).

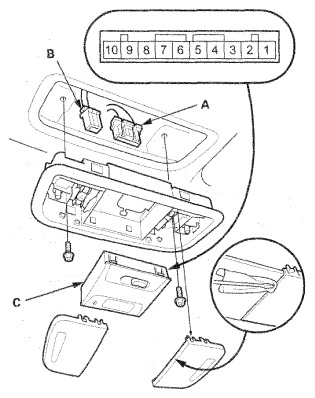

    Fig 1: Identifying Ambient Light Connector Terminals
    G06954021Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the interior light switch (C) from the map light housing.
  4. At the interior light switch 10P connector, check the light by connecting battery power to terminal No. 7 and ground to terminal No. 6. The ambient light should come on. If the light does not come on, replace the interior light switch assembly.
  5. Install the light in the reverse order of removal.
