Individual Map Light Test/Replacement
- Turn the individual map light switch OFF.

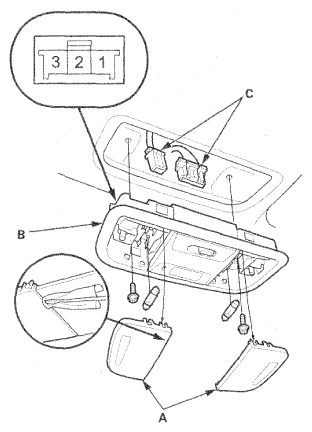

- Carefully pry off the lens (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the two screws, then remove the individual map light (B).
- Disconnect the connectors (C) from the individual map light.
- Check for continuity between the terminals.
- There should be continuity between the terminal No. 3 and ground terminal with the switch in the ON position.
- There should be no continuity between the terminal No. 3 and ground terminal with the switch in the OFF position.
- If the continuity is not as specified, check the bulb. If the bulb is OK, replace the individual map light.
- Install the light in the reverse order of removal.
