HFL Microphone Removal/Installation

  1. Remove the individual map light (see INDIVIDUAL MAP LIGHT TEST/REPLACEMENT ).
  2. Carefully pry off the microphone (A) from the map light housing (B) while pressing in on the retaining tabs (C).

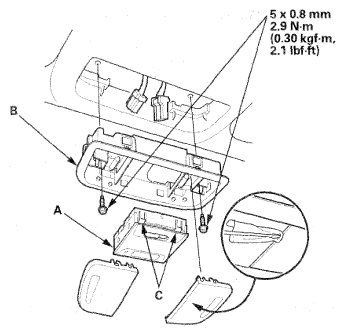

    Fig 1: Microphone, Map Light Housing And Retaining Tabs With Torque Specifications
    G06952310Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the HFL microphone in the reverse order of removal.
