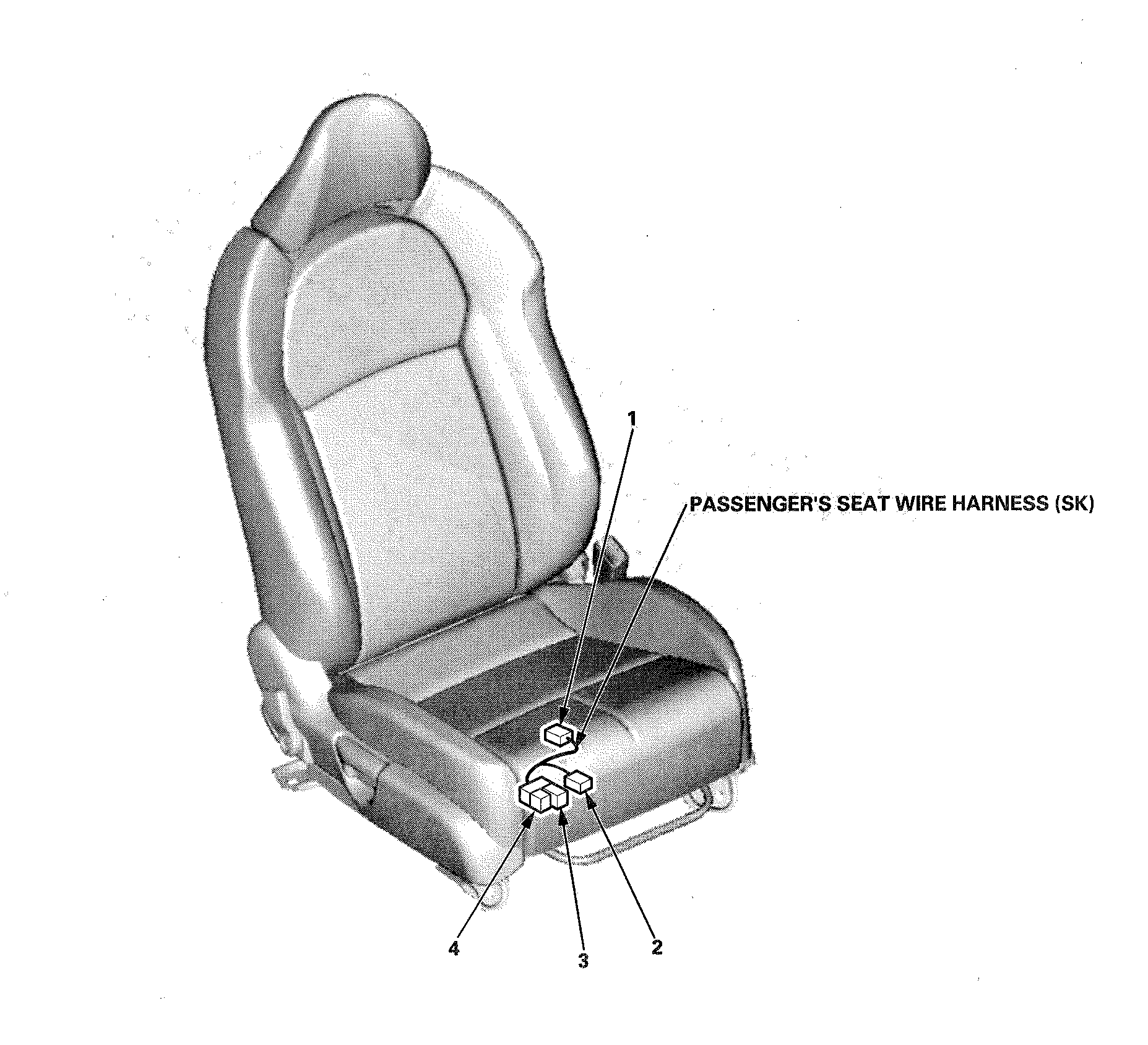

Passenger's Seat Wire Harness (SK)
CONNECTOR TERMINAL REFERENCE CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Passenger's seat cushion heater | 1 | 4 | Under passenger's seat | ||
| Passenger's seat heater relay (high) | 4 | 4 | Under passenger's seat | ||
| Passenger's seat heater relay (low) | 3 | 5 | Under passenger's seat | ||
| C557 | 2 | 5 | Under passenger's seat | ODS unit harness |
