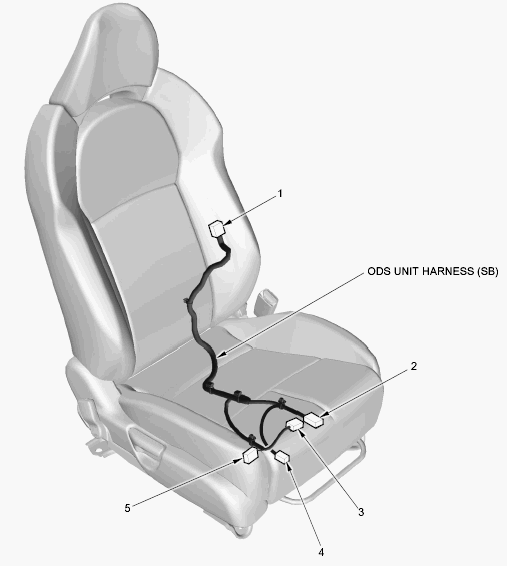

ODS Unit Harness (SB)
CONNECTOR TERMINAL REFERENCE CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Inner side front passenger's weight sensor | 3 | 2 | Passenger's seat | ||
| ODS unit | 1 | 18 | Passenger's seat | ||
| Outer side front passenger's weight sensor | 5 | 3 | Passenger's seat | ||
| C502 | 2 | 4 | Under passenger's seat | Floor wire harness (see FLOOR WIRE HARNESS (SA) ) | '11 model |
| C502 | 2 | 8 | Under passenger's seat | Floor wire harness (see FLOOR WIRE HARNESS (SA) ) | '12 model |
| C557 | 45 | 5 | Under passenger's seat | Passenger's seat wire harness (see PASSENGER'S SEAT WIRE HARNESS (SK) | With seat heater |
