Driver's Side Wire Harness (BB)

CONNECTOR TERMINAL REFERENCE CHART

Connector or Terminal	Ref	Cavities	Location	Connects to
Cargo area light	8	2	Left side of cargo area
Driver's door switch	3	1	Left center pillar
EVAP canister vent shut valve	17	2	Under floor
FTP sensor	16	3	Under floor
IPU module fan	13	4	Behind right side of cargo area
Left rear speaker	4	2	Left rear tray area
Left rear taillight/brake light/back-up light/turn signal light/side marker light	9	6	Behind left side of cargo area
Left side curtain airbag inflator	7	2	Left rear pillar
Left-rear wheel speed sensor	18	2	Under floor
Noise condenser	19	2	Left rear tray area
Right rear taillight/brake light/back-up light/turn signal light/side marker light	11	6	Behind right side of cargo area
Subwoofer	10	2	Left side of cargo area
Under-dash fuse/relay box connector D (see UNDER-DASH FUSE/RELAY BOX )	2	49	Under left side of dash	Under-dash fuse/relay box
C105	20	2	Left rear tray area	Floor wire harness (see FLOOR WIRE HARNESS (SA) )
C106	1	12	Under left side of dash	Dashboard wire harness (see DASHBOARD WIRE HARNESS (VIEW OF DRIVER'S SIDE) (BD) )
C107	6	12	Left rear tray area	Hatch wire harness (see HATCH WIRE HARNESS (BC) )
C109	14	2	Lower side of tailgate	License subharness (see LICENSE SUBHARNESS (BG) )
C110	22	20	Under left side of dash	Left engine compartment wire harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (BF) )
C111	15	20	Behind left side of cargo area	IPU wire harness (see IPU WIRE HARNESS (IB) )
G701	12		Behind right side of cargo area	Body ground, via driver's side wire harness
G702	5		Left rear tray area	Body ground, via driver's side wire harness
G703	21		Under left side of dash	Body ground, via driver's side wire harness

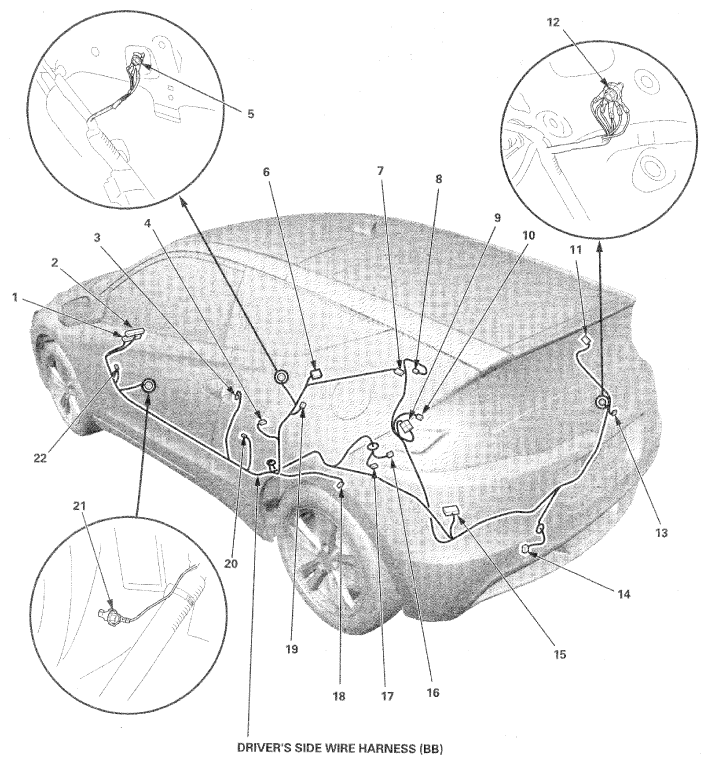

Fig 1: Identifying Driver's Side Wire Harness (BB)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
