License Subharness (BG)

CONNECTOR TERMINAL REFERENCE CHART

Connector or Terminal Ref Cavities Location Connects to Notes
Left license plate light 12 2 Lower side of tailgate
Right license plate light 11 2 Lower side of tailgate
C109 13 2 Lower side of tailgate Driver's side wire harness (see DRIVER'S SIDE WIRE HARNESS (BB)  )

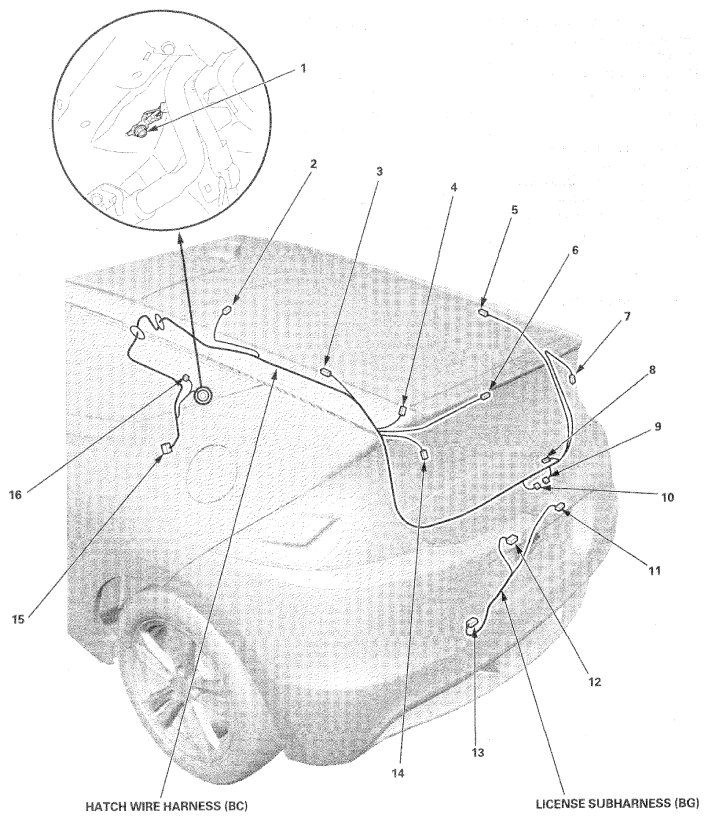

Fig 1: Identifying Hatch Wire Harness (BC) And License Subharness (BG)
G06953815Courtesy of AMERICAN HONDA MOTOR CO., INC.
