Cylinder Head Cover Removal: Rear

  1. Remove the intake manifold (see INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  2. Remove the three ignition coils from the rear cylinder head (see IGNITION COIL REMOVAL/INSTALLATION ).
  3. Remove the drive belt (see DRIVE BELT INSPECTION ).
  4. Remove the bolt securing the power steering (P/S) hose bracket and the P/S pump without disconnecting the P/S hoses (see step 5 on CYLINDER HEAD REMOVAL ).
  5. Remove the harness holder mounting bolts (A), the ground cable (B), and the breather hose (C).

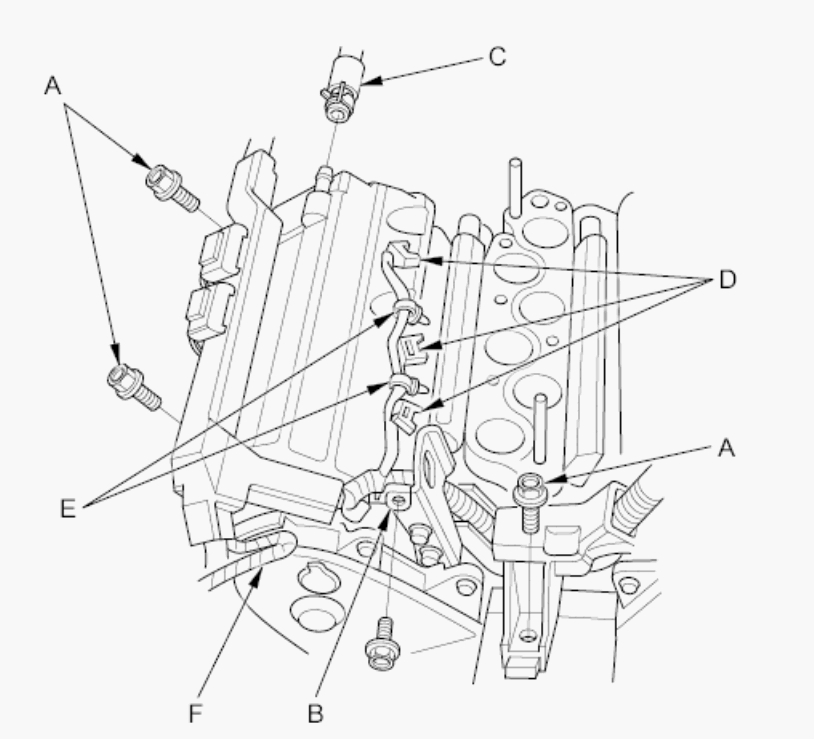

    Fig 1: Identifying Harness Holder Mounting Bolts And Breather Hose
    G00511660Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Disconnect the three injector connectors (D) and remove the harness clamps (E).
  7. Remove the engine wire harness (F) from the rear upper cover.
  8. Remove the rear cylinder head cover.
    Fig 2: Identifying Rear Cylinder Head Cover And Clips
    G05964067Courtesy of AMERICAN HONDA MOTOR CO., INC.
