Dashboard Wire Harness (Right branch)

DASHBOARD WIRE HARNESS CONNECTOR REFERENCE CHART (RIGHT BRANCH)

Connector or Terminal Ref Cavities Location Connects to Notes
Antenna lead 25 3 Behind right side of dash
Audio disc changer connector A 5 18 Middle of dash   (1)
Audio disc changer connector B 6 14 Middle of dash   (1)
Audio unit (antenna lead) 15 3 Middle of dash   (1)
Audio unit (antenna lead) 12 3 Middle of dash   (2)
Audio unit connector A 14 24 Middle of dash   (1)
Audio unit connector A 3 24 Middle of dash   (2)
Audio unit connector B 13 14 Middle of dash   (1)
Audio unit connector B 4 14 Middle of dash   (2)
Audio unit connector C 11 14 Middle of dash   (1)
Audio unit connector C 10 14 Middle of dash   (2)
Auxiliary jack 18 5 Behind right side of dash   (1)
Climate control unit/HVAC control unit 42 30 Middle of dash
Data link connector (DLC) 40 16 Middle of dash
Driver's front accessory power socket 38 2 Middle of dash
Driver's seat heater switch 37 6 Middle of dash
Front passenger's airbag inflator 27 4 Behind right side of dash
Gauge control module connector C 1 20 Behind gauge control module
Glove box light 26 2 Behind right side of dash
HandsFreeLink control unit 39 28 Middle of dash   (1)
Hazard warning switch/front passenger's airbag cutoff indicator 44 6 Middle of dash
Heated windshield wiper area 20 2 Behind right side of dash
In-bed trunk lid main switch 28 2 Behind right side of dash
In-car temperature sensor 41 2 Middle of dash
Interior light switch 43 6 Middle of dash
Navigation display connector A 7 20 Middle of dash   (1)
Navigation display connector B 8 10 Middle of dash   (1)
Passenger's front accessory power socket 35 2 Middle of dash
Passenger's seat heater switch 36 6 Middle of dash
Right tweeter 19 2 Behind right side of dash
SRS unit connector A 31 28 Under console panel   (3)
SRS unit connector A 31 39 Under console panel   (4)
Select/reset switch (gauge) 47 6 Middle of dash
Sunlight sensor 9 2 Middle of dash
Trailer lighting control unit 45 12 Behind gauge control module
VTM-4 LOCK switch 48 5 Middle of dash
C202 23 4 Right kick panel Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS )
C404 22 23 Right kick panel Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) )
C405 33 20 Under right side of dash Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) ) (1)
C406 32 12 Under right side of dash Floor wire harness (see FLOOR WIRE HARNESS (RIGHT BRANCH) )
C407 30 22 Under right side of dash A/C wire harness (see A/C WIRE HARNESS )
C408 24 23 Under right side of dash Front passenger's door wire harness (see FRONT PASSENGER'S DOOR WIRE HARNESS )
C409 16 2 Middle of dash Dashboard wire harness (Right branch)
C409 17 2 Middle of dash Dashboard wire harness (Right branch)
C451 (Junction connector) 2 22 Behind gauge control module
C451 (Junction connector) 47 22 Behind gauge control module
G402 21   Right kick panel Body ground, via dashboard wire harness
G404 29   Under right side of dash Body ground, via dashboard wire harness
G405 34   Under right side of dash Body ground, via dashboard wire harness
(1) *1: With navigation

(2) *2: Without navigation system

(3) *3: '09-11 models

(4) *4: '12 model

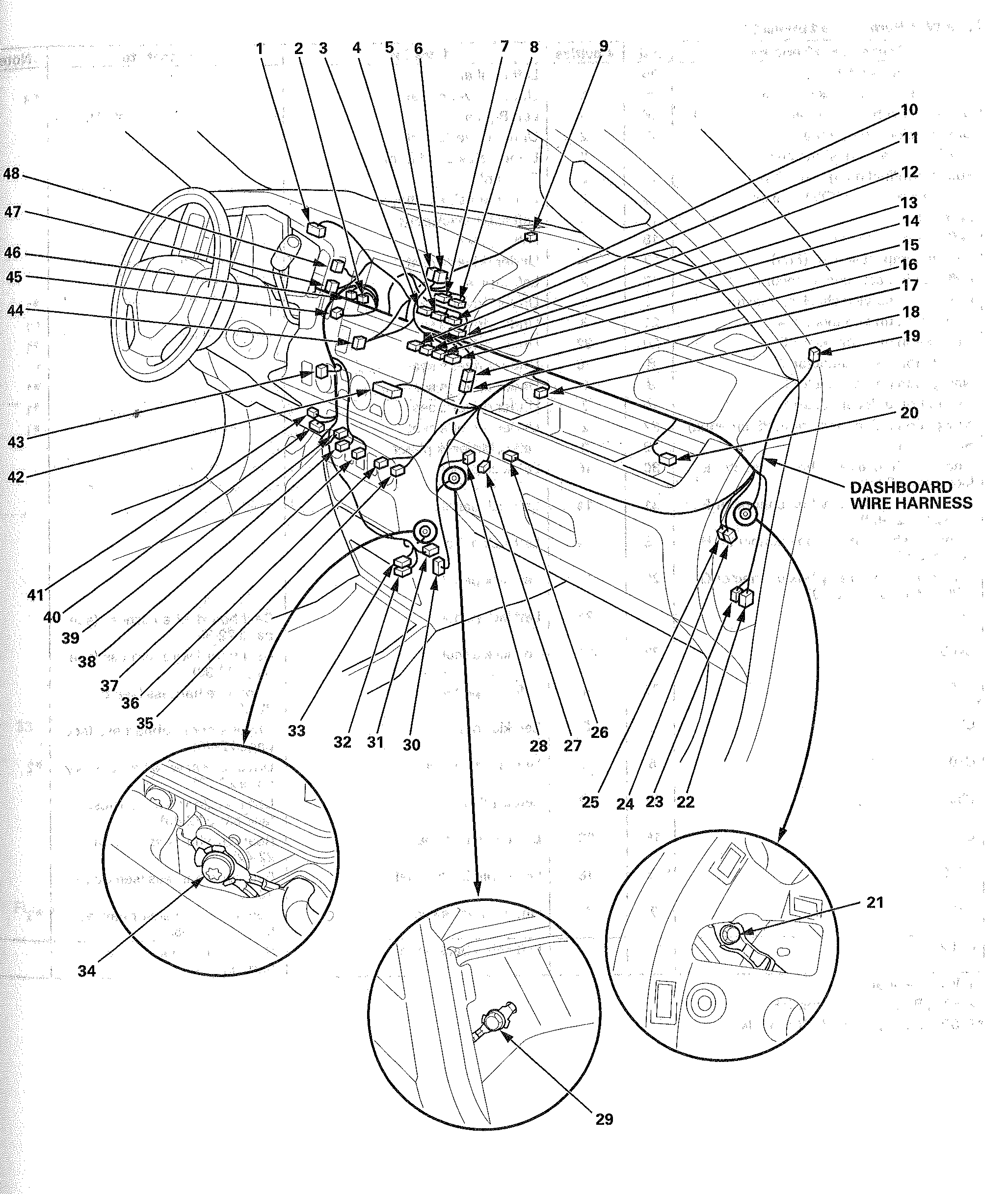

Fig 1: Identifying Dashboard Wire Harness (Right Branch)
G00511967Courtesy of AMERICAN HONDA MOTOR CO., INC.
