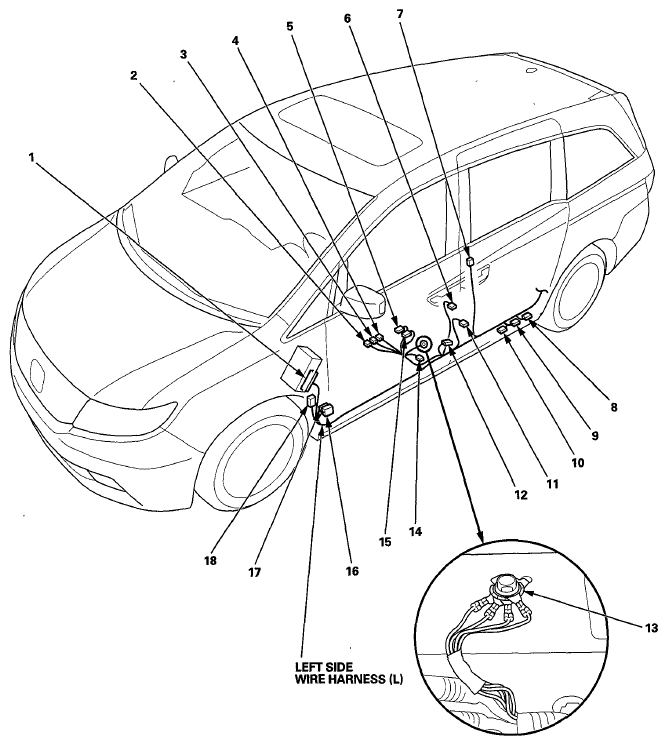

Left Side Wire Harness (Left Front Branch) (L)
LEFT SIDE WIRE HARNESS (LEFT FRONT BRANCH) REFERENCE CHART
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Driver's airbag inflator | 5 | 2 | Under driver's seat | ||||||||||
| Driver's door switch | 6 | 1 | Left B-pillar | ||||||||||
| Driver's seat belt outer lap tensioner | 11 | 2 | Left B-pillar | ||||||||||
| Driver's seat belt tensioner | 14 | 4 | Under driver's seat | ||||||||||
| Driver's under-dash fuse/relay box connector E (see DRIVER'S UNDER-DASH FUSE/RELAY BOX ) | 1 | 44 | Under left side of dash | ||||||||||
| Left B-pillar power sliding door switch | 7 | 5 | Under driver's seat | ||||||||||
| Left side impact sensor (First) | 12 | 4 | Left B-pillar | ||||||||||
| Left side impact sensor (Second) | 10 | 2 | Left side of floor | ||||||||||
| C303 | 18 | 2 | Under left side of dash | Left engine compartment wire harness (dashboard branch) (see Left Engine Compartment Wire Harness (Dashboard Branch) (G) ) | |||||||||
| C403 | 17 | 4 | Under left side of dash | Dashboard wire harness (view of driver's side) (see Dashboard Wire Harness (View of Driver's Side) (H) ) | |||||||||
| C404 | 16 | 20 | Under left side of dash | Dashboard wire harness (view of driver's side) (see Dashboard Wire Harness (View of Driver's Side) (H) ) | |||||||||
| C601 | 15 | 23 | Under driver's seat | Driver's seat wire harness (see Driver's Seat Wire Harness (W) ) | (1) | ||||||||
| C601 | 15 | 18 | Under driver's seat | Driver's seat wire harness (see Driver's Seat Wire Harness (W) ) | (2) | ||||||||
| C602 | 2 | 16 | Left middle of floor | Right side wire harness (right front branch) (see Right Side Wire Harness (Right Front Branch) (M) ) | |||||||||
| C603 | 3 | 4 | Left middle of floor | Right side wire harness (right front branch) (see Right Side Wire Harness (Right Front Branch) (M) ) | |||||||||
| C604 | 4 | 8 | Left middle of floor | Right side wire harness (right front branch) (see Right Side Wire Harness (Right Front Branch) (M) ) | |||||||||
| C605 | 9 | 21 | Left sliding door sill | Left CESS articulated harness (see Left CESS Articulated Harness (T) ) | (3) | ||||||||
| C605 | 9 | 6 | Left sliding door sill | Left CESS articulated harness (see Left CESS Articulated Harness (T) ) | (4) | ||||||||
| C606 | 8 | 6 | Left sliding door sill | Left CESS articulated harness (see Left CESS Articulated Harness (T) ) | |||||||||
| G601 | 13 | On floor under driver's seat | Body ground, via left side wire harness | ||||||||||
|
|||||||||||||
