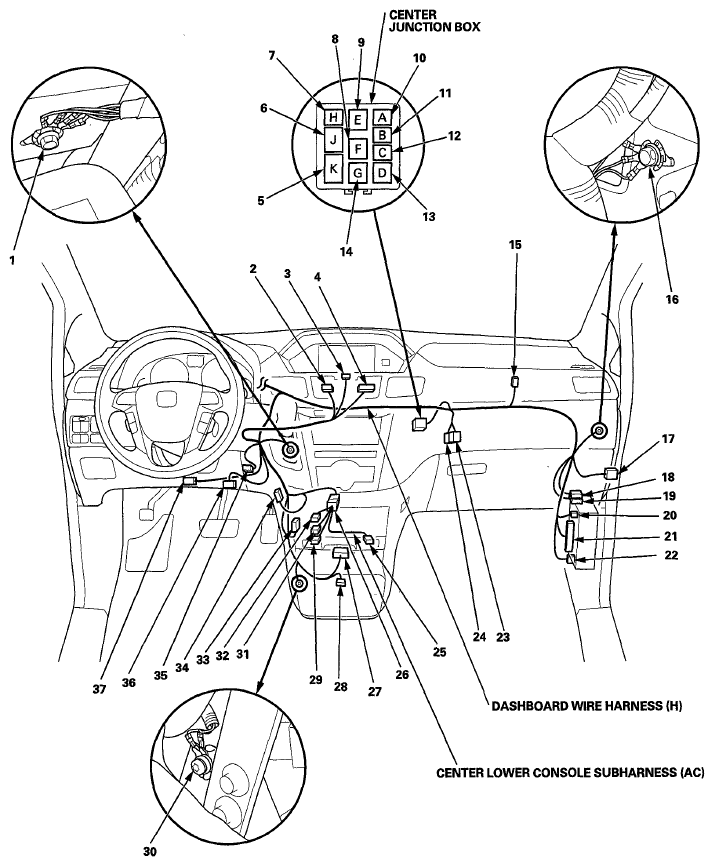

Dashboard Wire Harness (View of Middle to Passenger's Side) (H)
DASHBOARD WIRE HARNESS (VIEW OF MIDDLE TO PASSENGER'S SIDE) REFERENCE CHART
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Center junction box connector A |
10 |
4 |
Under middle of dash |
|
|
| Center junction box connector B |
11 |
4 |
Under middle of dash |
|
|
| Center junction box connector C |
12 |
4 |
Under middle of dash |
|
|
| Center junction box connector D |
13 |
6 |
Under middle of dash |
|
|
| Center junction box connector E |
9 |
6 |
Under middle of dash |
|
|
| Center junction box connector F |
8 |
6 |
Under middle of dash |
|
|
| Center junction box connector G |
14 |
6 |
Under middle of dash |
|
|
| Center junction box connector H |
7 |
4 |
Under middle of dash |
|
|
| Center junction box connector J |
6 |
8 |
Under middle of dash |
|
|
| Center junction box connector K |
5 |
10 |
Under middle of dash |
|
|
| HVAC control unit connector |
4 |
28 |
Under middle of dash |
|
|
| Climate control unit connector A |
4 |
28 |
Under middle of dash |
|
|
| Climate control unit connector B |
2 |
16 |
Under middle of dash |
|
|
| Data link connector (DLC) |
36 |
16 |
Under left side of dash |
|
|
| Driver's footwell light |
37 |
2 |
Under left side of dash |
|
|
| Front passenger's airbag inflator first and second |
15 |
4 |
Under right side of dash |
|
|
| Hazard warning switch |
3 |
5 |
Under middle of dash |
|
|
| Humidity/in-car temperature sensor |
35 |
4 |
Under middle of dash |
|
|
| Shift lever |
34 |
12 |
Under middle of dash |
|
|
| Passenger's under-dash fuse/relay box connector E (see
PASSENGER'S UNDER-DASH FUSE/RELAY BOX
) |
21 |
42 |
Under right side of dash |
|
|
| Passenger's under-dash fuse/relay box connector F (see
PASSENGER'S UNDER-DASH FUSE/RELAY BOX
) |
20 |
4 |
Under right side of dash |
|
|
| SRS unit connector A |
27 |
39 |
Under middle of dash |
|
|
| Yaw rate-acceleration sensor |
28 |
4 |
Under middle of dash |
|
|
Courtesy of AMERICAN HONDA MOTOR CO., INC. DASHBOARD WIRE HARNESS (VIEW OF MIDDLE TO PASSENGER'S SIDE) REFERENCE CHART
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| C204 |
18 |
4 |
Under right side of dash |
Right engine compartment wire harness (dashboard branch) (see Right Engine Compartment Wire Harness (Dashboard Branch) (F) ) |
|
| C205 |
19 |
34 |
Under right side of dash |
Right engine compartment wire harness (dashboard branch) (see Right Engine Compartment Wire Harness (Dashboard Branch) (F) ) |
|
| C205 |
19 |
20 |
Under right side of dash |
Right engine compartment wire harness (dashboard branch) (see Right Engine Compartment Wire Harness (Dashboard Branch) (F) ) |
|
| C410 |
26 |
18 |
Under middle of dash |
Center lower console subharness |
|
| C411 |
33 |
34 |
Under middle of dash |
Front A/C wire harness (see Front A/C Wire Harness (K) ) |
|
| C412 |
23 |
16 |
Under right side of dash |
Audio wire harness:
|
|
| C413 |
24 |
23 |
Under right side of dash |
Audio wire harness:
|
|
| C414 |
17 |
23 |
Under right side of dash |
Front passenger's door wire harness (see Front Passenger's Door Wire Harness (R) ) |
|
| C414 |
17 |
13 |
Under right side of dash |
Front passenger's door wire harness (see Front Passenger's Door Wire Harness (R) ) |
|
| C415 |
22 |
20 |
Under right side of dash |
Right side wire harness (right front branch) (see Right Side Wire Harness (Right Front Branch) (M) ) |
|
| G403 |
1 |
|
Under middle of dash |
Body ground, via dashboard wire harness |
|
| G404 |
30 |
|
Under middle of dash |
Body ground, via dashboard wire harness |
|
| G405 |
16 |
|
Under right side of dash |
Body ground, via dashboard wire harness |
|
