BSI Radar Unit Removal/Installation

Remove the rear bumper (see FRONT FOG LIGHT TRIM REPLACEMENT ).
Remove the BSI radar unit (A).
1. Disconnect the 6P connector (B), and detach the harness clips (C).
2. Remove the bolts.

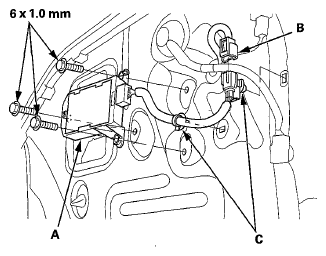

  Fig 1: Identifying BSI Radar Unit, Connector And Harness Clips
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the BSI radar unit (A).
1. Install the bolts.
2. Reconnect the 6P connector (B) and attach the harness clips (C).
  NOTE: Clean the surface of the BSI radar unit, and make sure BSI radar unit installed to the BSI radar unit bracket (D) properly.

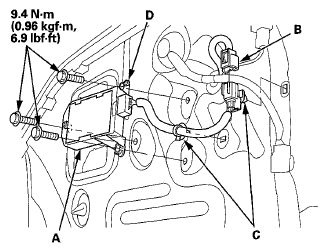

  Fig 2: Identifying BSI Radar Unit, Connector, Harness Clips And Radar Unit Bracket
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do the BSI radar unit aiming inspection (see BSI RADAR UNIT AIMING INSPECTION ).
