Cylinder Head Cover Removal

  1. Remove the intake manifold chamber (see REMOVAL ).
  2. Disconnect the four ignition coil connectors (A).
  3. Remove the harness holder (B) and the breather hose (C).
    Fig 1: Identifying Ignition Coil Connectors, Harness Holder & Breather Hose
    G05952500Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the cylinder head cover.

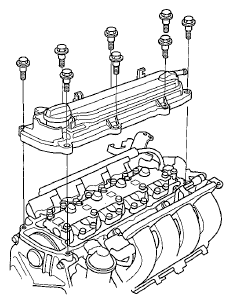

    Fig 2: Identifying Cylinder Head Cover And Fasteners
    G05952501Courtesy of AMERICAN HONDA MOTOR CO., INC.
