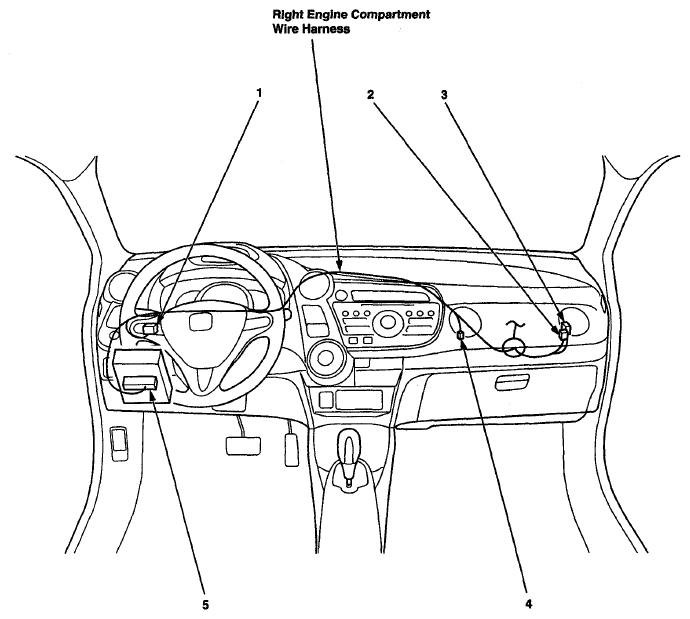

| 1 |
C202 (Female) |
4-YEL |
Behind Glove Box |
Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF PASSENGER'S SIDE)
) |
|
| 2 |
C201 (Female) |
16-WHT |
Behind Glove Box |
Dashboard Wire Harness (see DASHBOARD WIRE HARNESS (VIEW OF PASSENGER'S SIDE)
) |
|
| 3 |
Evaporator Temperature Sensor |
2-WHT |
Behind Glove Box |
|
|
| 4 |
C304 (Female) |
13-WHT |
Under Left Side of Dash |
Left Engine Compartment Wire Harness (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH)
) |
|
| 5 |
Under-dash Fuse/Relay Box Connector A (see
CONNECTOR-TO-FUSE/RELAY BOX INDEX
) |
36-LT BLU/WHT |
Under Left Side of Dash |
|
|
