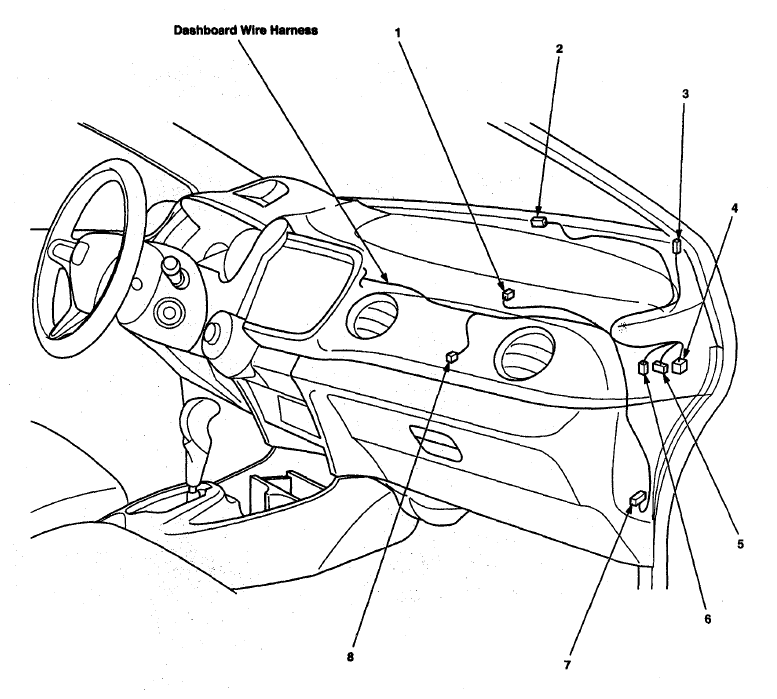

| 1 |
Front Passenger's Airbag First and Second Inflators |
4-YEL |
Behind Glove Box |
|
|
| 2 |
Sunlight Sensor |
2-GRY |
Right Side of Dash |
|
|
| 3 |
Right Tweeter |
2-BLK |
Right Side of Dash |
|
Tweeters |
| 4 |
C411 (Male) |
18-WHT |
Behind Glove Box |
Front Passenger's Door Wire Harness (see FRONT PASSENGER'S DOOR WIRE HARNESS
) |
|
| 5 |
C201 (Male) |
16-WHT |
Behind Glove Box |
Right Engine Compartment Wire Harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH)
) |
|
| 6 |
C202 (Male) |
4-YEL |
Behind Glove Box |
Right Engine Compartment Wire Harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASH BRANCH)
) |
|
| 7 |
HandsFreeLink Control Unit |
28-GRY |
Behind Glove Box |
|
Navigation |
| 8 |
Glove Box Light |
2-WHT |
Glove Box |
|
Glove Box Light |
