Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, do the "Rewriting the ODO Data and Transferring the Maintenance Minder Data to a New Gauge Control Module" (see REWRITING THE ODO DATA AND TRANSFERRING THE MAINTENANCE MINDER DATA TO A NEW GAUGE CONTROL MODULE ).
  1. Tilt the steering wheel down.
  2. Remove the instrument panel (see INSTRUMENT VISOR REMOVAL/INSTALLATION ).
  3. Remove the screws from the gauge control module (A), and spread a protective cloth (B) on the upper column cover.

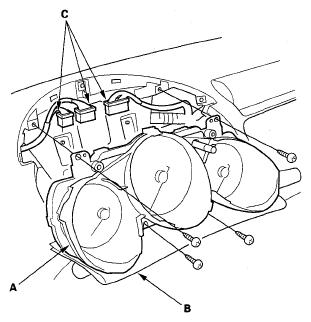

    Fig 1: Identifying Gauge Control Module Screws
    G05456721Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the connectors (C), and remove the gauge control module.
  5. Install the gauge control module in the reverse order of removal.
