Timing Belt Drive Pulley Replacement

  1. Remove the timing belt (see TIMING BELT INSPECTION  ).
  2. Remove the crankshaft position (CKP) sensor A/B (see CKP SENSOR REPLACEMENT ).
  3. Remove the timing belt drive pulley (A) and key (B).

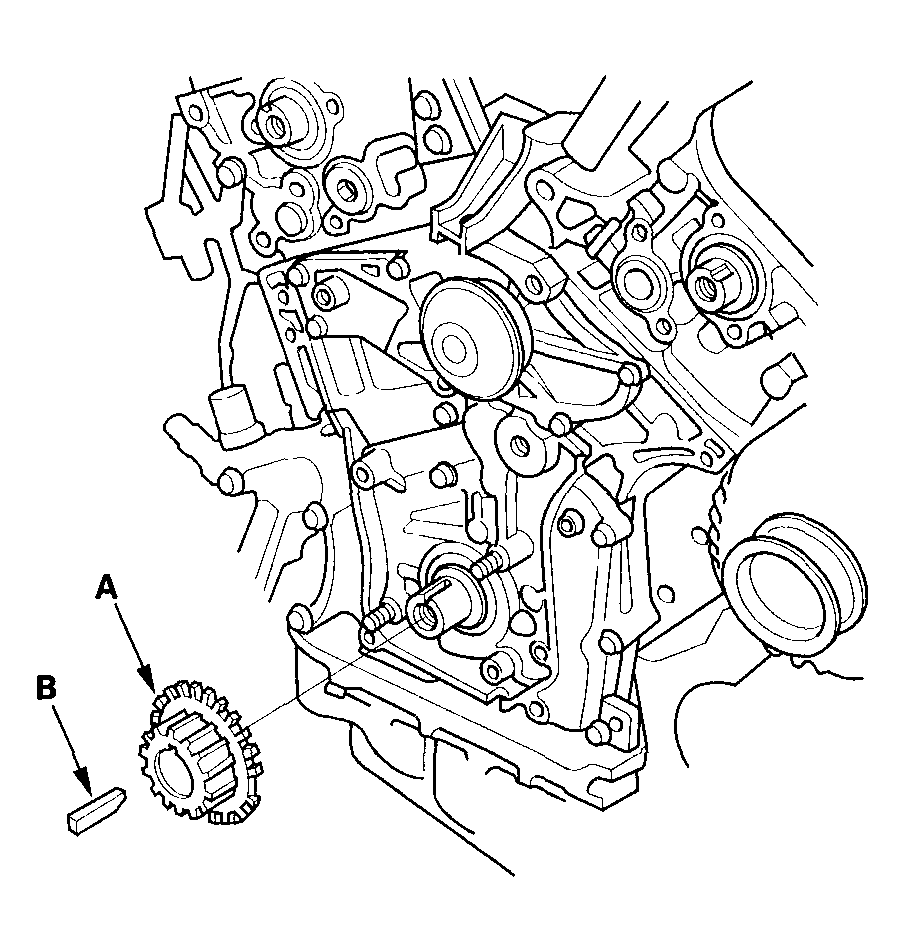

    Fig 1: Removing Timing Belt Drive Pulley (A) And Key (B)
    G04545626Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Inspect the timing belt pulley and key for damage. If it is cracked or damaged, replace the timing belt drive pulley.
  5. Install the new timing belt drive pulley.
  6. Install the CKP sensor A/B (see CKP SENSOR REPLACEMENT ).
  7. Install the timing belt (see TIMING BELT REPLACEMENT  ).
  8. Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
