Timing Belt Inspection

  1. Remove the drive belt (see DRIVE BELT REPLACEMENT ).
  2. Remove the front upper cover.

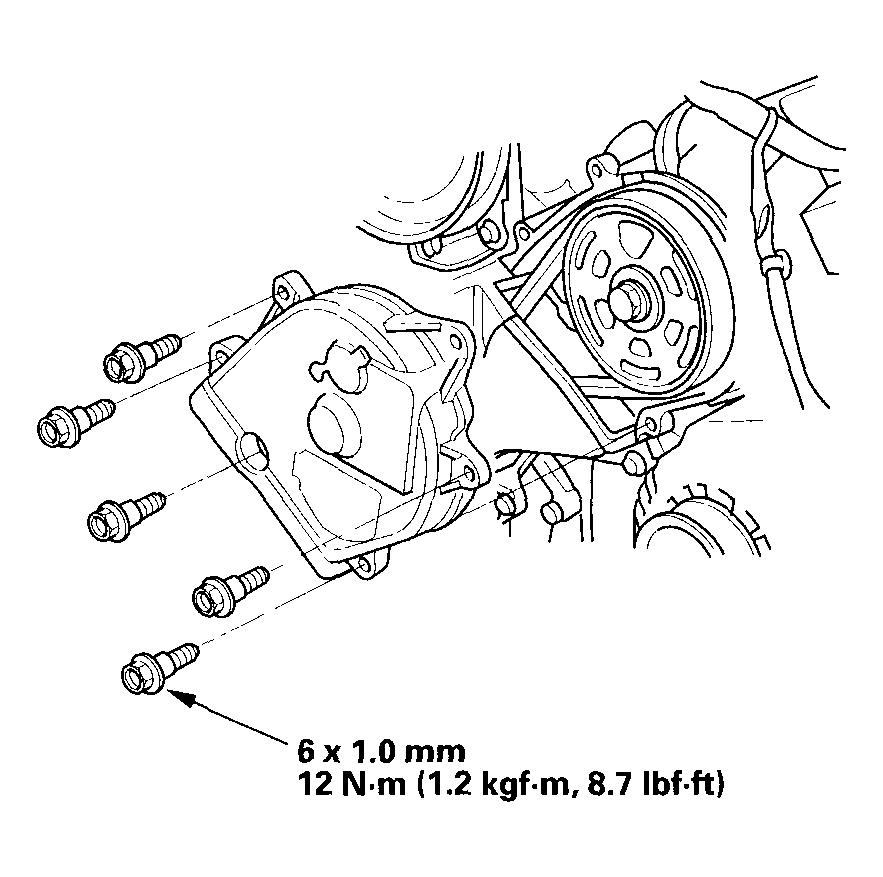

    Fig 1: Removing Front Upper Cover
    G04545578Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Inspect the timing belt for cracks and oil or coolant contamination. Replace the belt if it is cracked, or is contaminated with oil or coolant. Wipe off any oil or solvent that gets on the belt.
    Fig 2: Inspecting Timing Belt For Cracks
    G04545579Courtesy of AMERICAN HONDA MOTOR CO., INC.
