Lower Glove Box Damper Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.
  1. Remove the lower glove box (see LOWER GLOVE BOX REMOVAL/INSTALLATION  ).
  2. Remove the bolt and lower glove box damper (A).

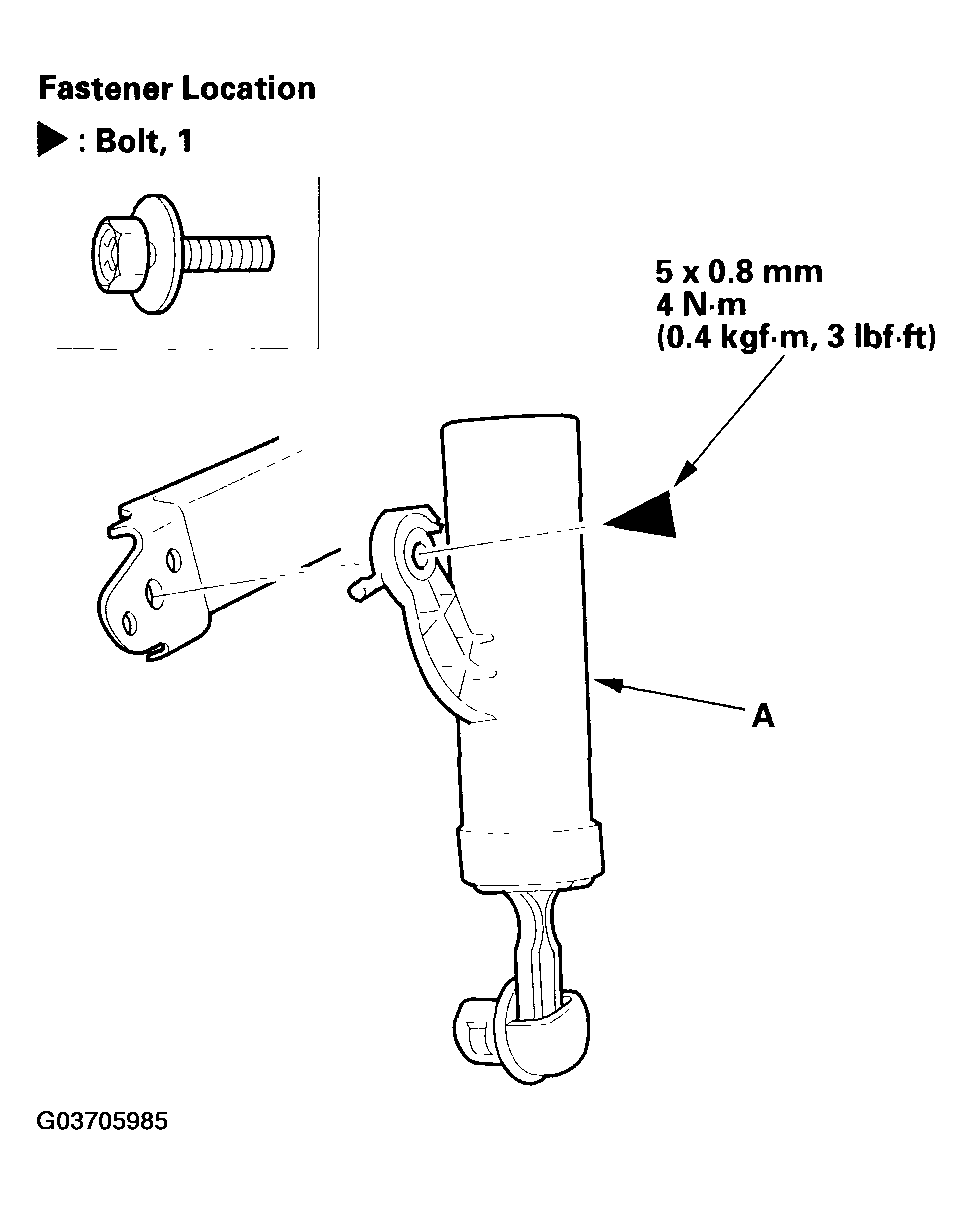

    Fig 1: Removing Lower Glove Box Damper
    G03705985Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the damper in the reverse order of removal.
