Lower Glove Box Removal/Installation

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or service.

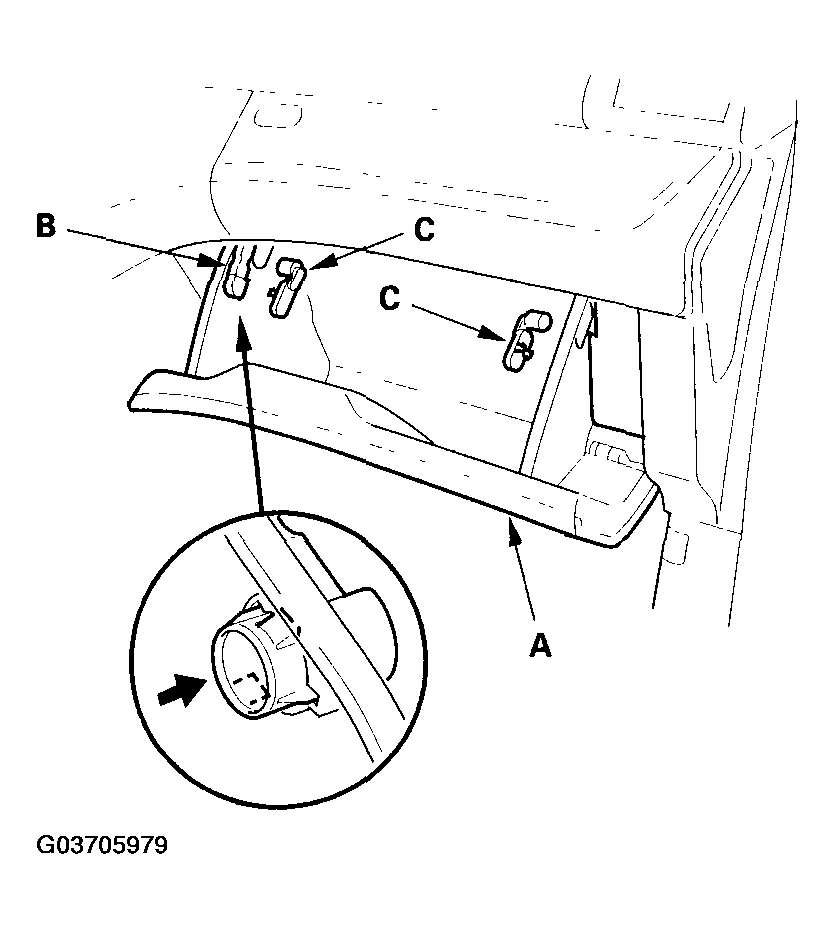

1. While holding the lower glove box (A), release the damper (B) and remove the glove box stop (C) on each side.
   Fig 1: Removing Glove Box Stop

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the bolts, then remove the lower glove box (A).
   Fig 2: Removing Lower Glove Box

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the lower glove box in the reverse order of removal.
