Shift Lever Trim Removal/Installation

Special Tools Required: KTC trim tool set SOJATP2014

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
Take care not to scratch the dashboard and related parts.
Put on gloves to protect your hands.

Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).

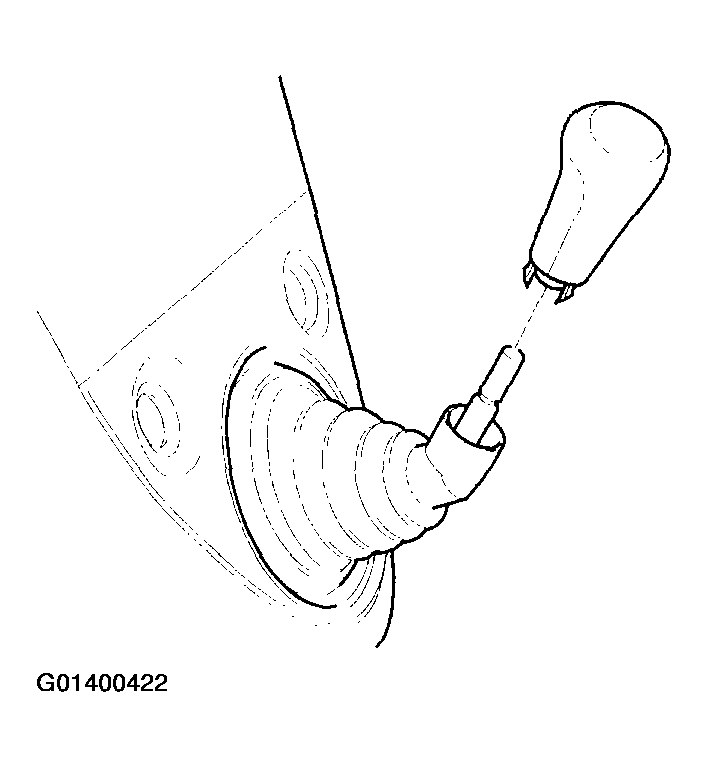

Remove the shift knob.

Fig 1: Removing The Shift Knob
Courtesy of AMERICAN HONDA MOTOR CO., INC.

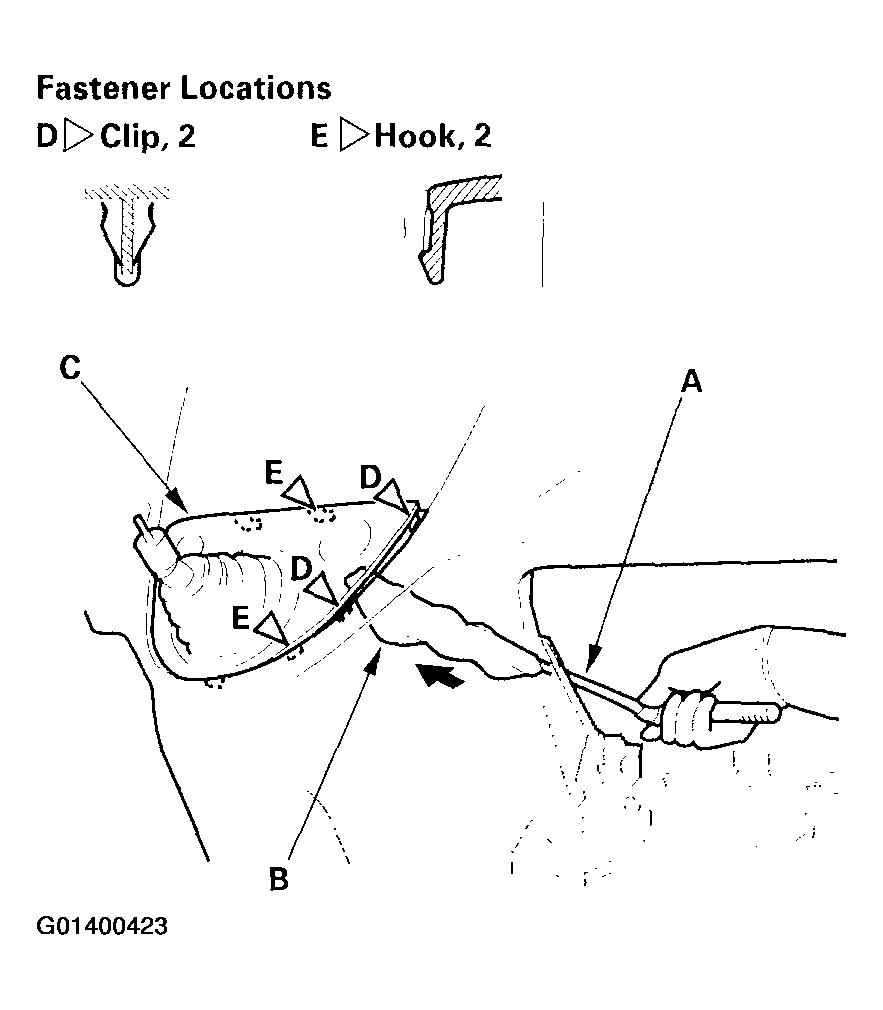

Using a ratchet wrench and an 11 inch extension (A) wrapped with a shop towel (B), carefully insert the extension through the glove box opening, and push the shift lever trim (C) from under the trim to release the clips (D) and hooks (E) of the left side.

Fig 2: Releasing Shift Lever Trim Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

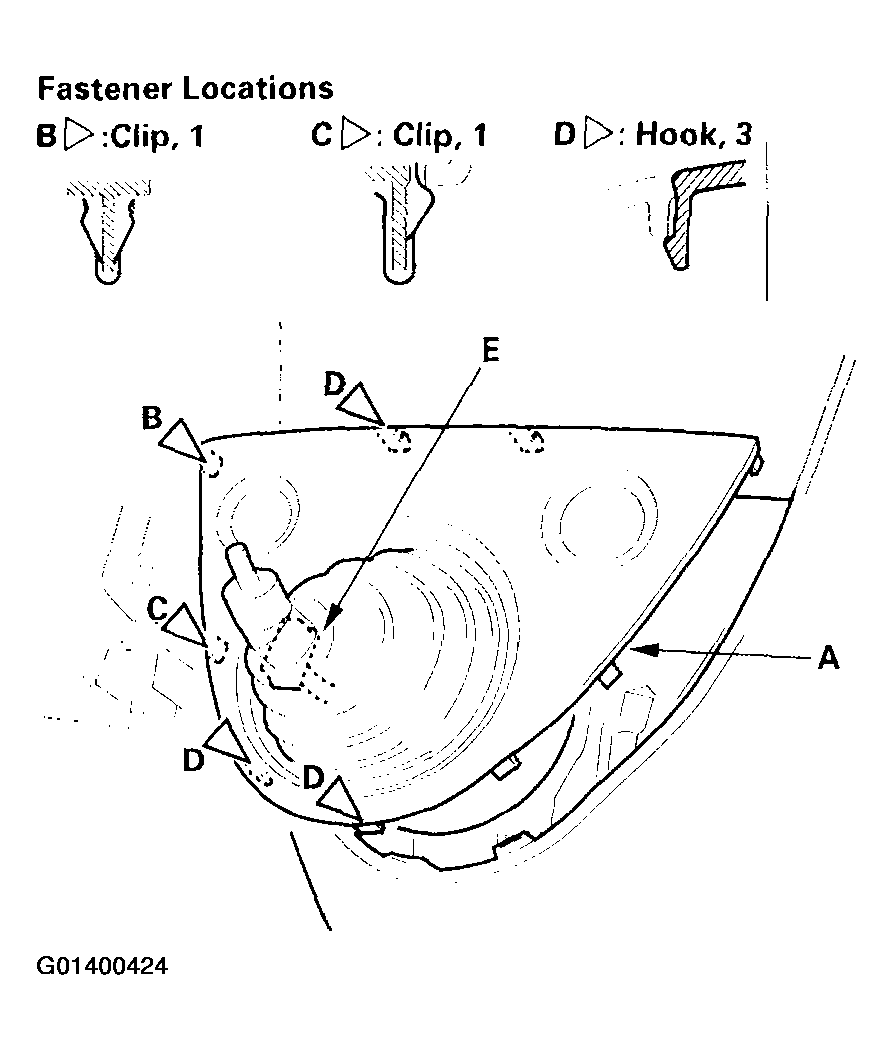

Pull out the shift lever trim (A) by hand to release the remaining clips (B, C) and hooks (D), and disconnect the hazard warning switch connector (E), then remove the trim.

Fig 3: Removing Shift Lever Trim
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and note these items:
- Make sure the hazard warning switch connector is plugged in properly.
- Replace any damaged clips.
- Push the clips and hooks into place securely.
