Glove Box Removal/Installation

NOTE: SRS components are located in this area. Review the SRS component locations and the precautions and procedures before performing repairs or service. See appropriate AIR BAG RESTRAINT SYSTEMS article.

NOTE: Take care not to scratch the dashboard and related parts.

Remove the passenger's dashboard lower cover.
While holding the glove box (A), remove the glove box stops (B) on each side.

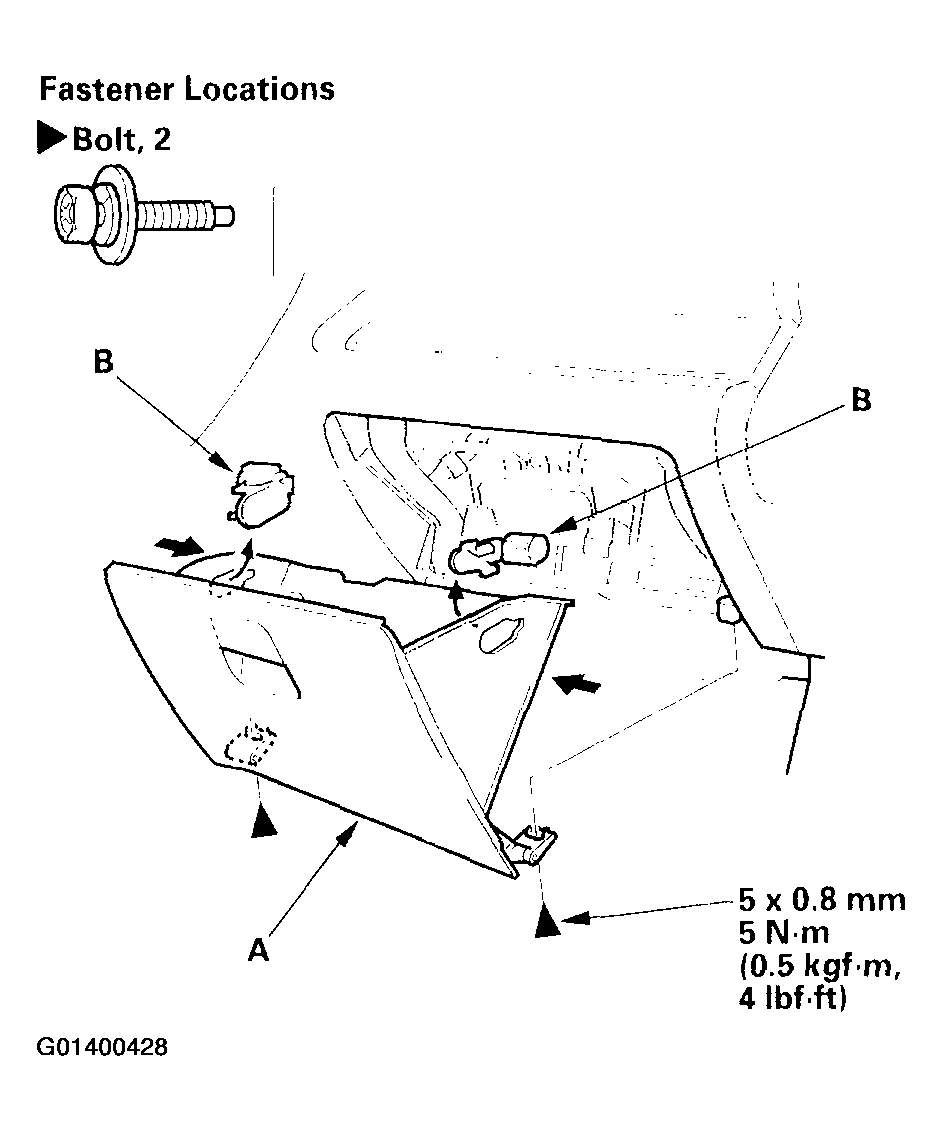

Fig 1: Removing Glove Box
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, then remove the glove box.
Install the glove box in the reverse order of removal.
