Rear Seat Removal/Installation
NOTE:
Take care not to scratch the body or tear the seat covers.

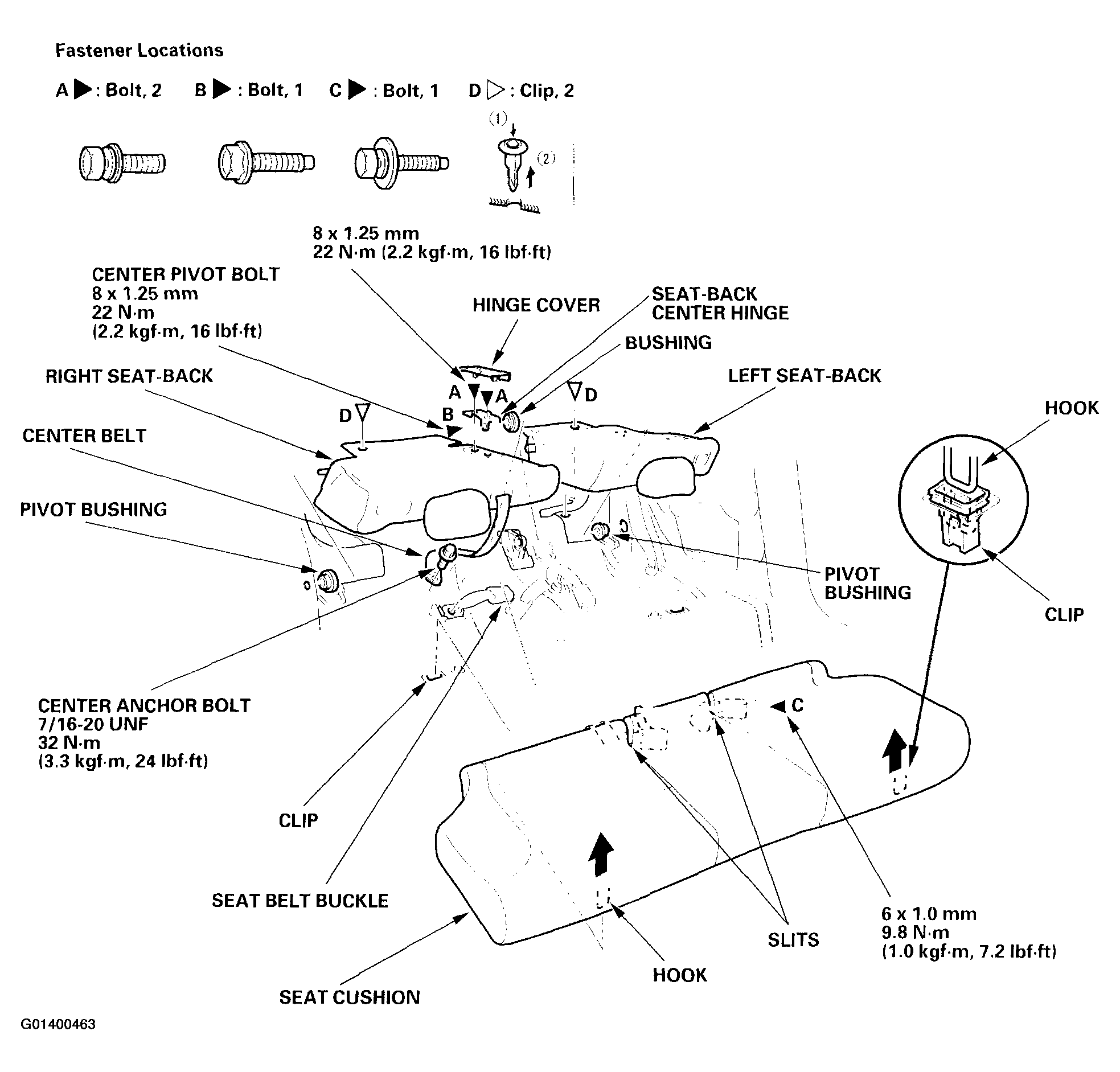

- Remove the rear seat as shown. To remove the seat-back, remove the front portion of the cargo floor mat (see TRIM REMOVAL/INSTALLATION - CARGO FLOOR AREA ).
- Install the seat in the reverse order of removal, and note these items:
- Before installing the center anchor bolts on the seat-back with the center shoulder belt, make sure there are no twists or kinks in the seat belt.
- Make sure the seat-backs lock securely.
