Trim Removal/Installation - Cargo Floor Area
Special Tools Required: KTC trim tool set SOJATP2014
NOTE:
- Put on gloves to protect your hands.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to bend or scratch the trim and panels.
- To remove the rear trim panel, remove the child seat tether anchor.

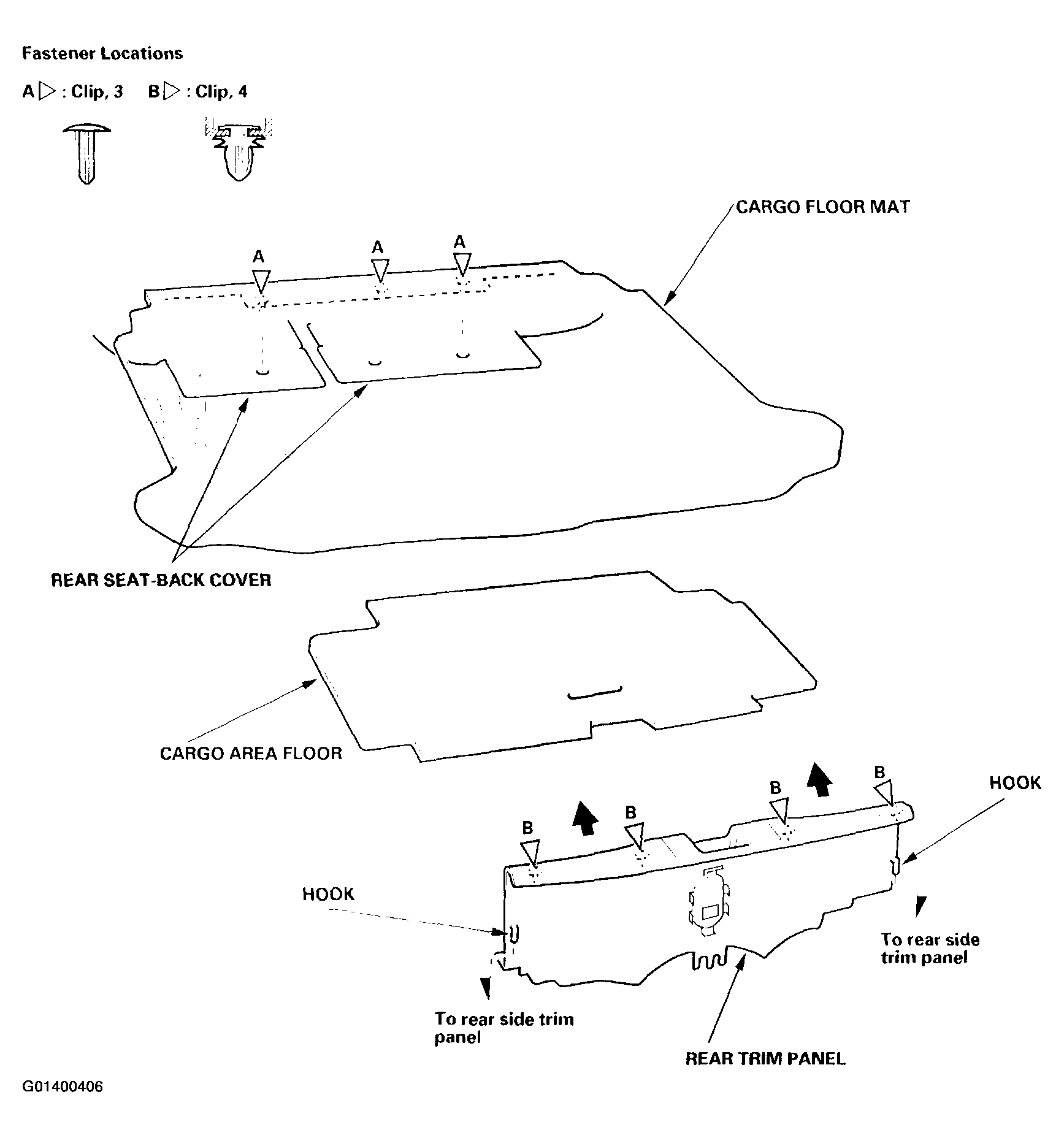

- Remove the trim as shown.
- Install the trim in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips into place securely.
