Gauge Assembly Replacement

  1. Remove the instrument panel (see DASHBOARD REMOVAL/INSTALLATION ), then remove the upper column cover (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  2. Place a clean shop towel (A) under the gauge assembly to prevent scratching the steering column or dash panel.
  3. Remove the screws from the gauge assembly (B).

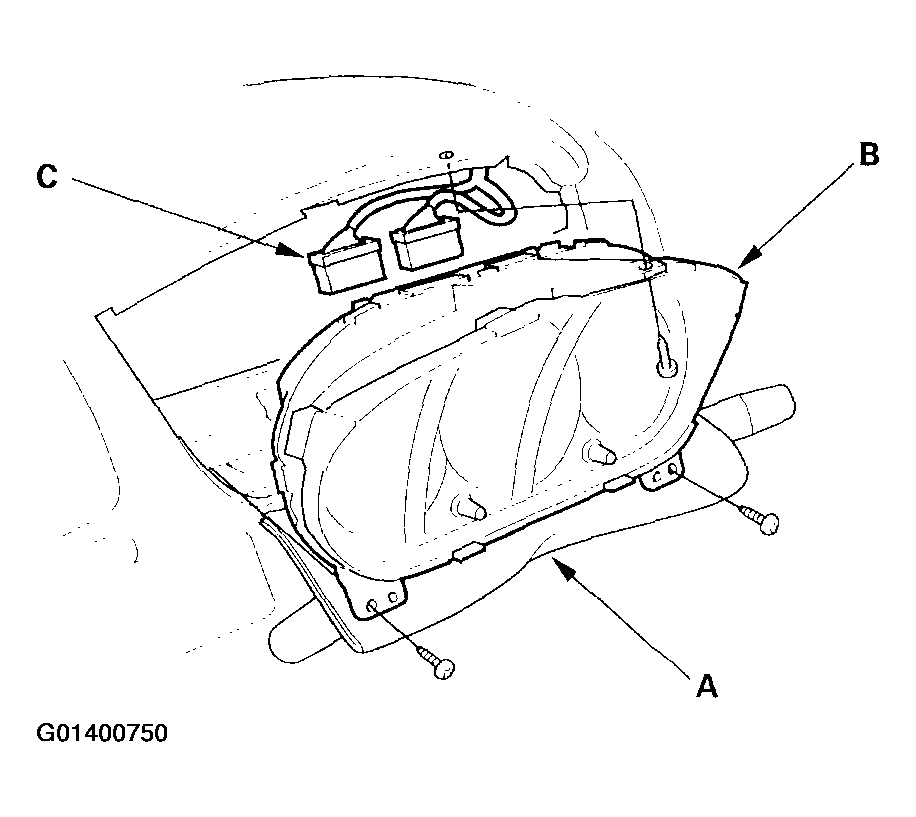

    Fig 1: Removing The Gauge Assembly
    G01400750Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the connectors (C), and remove the gauge assembly.
  5. Install the gauge assembly in the reverse order of removal.
