Gauge Assembly Replacement

  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Remove the screws (A) from the gauge assembly (B), and spread a protective cloth (C) on the upper column cover.

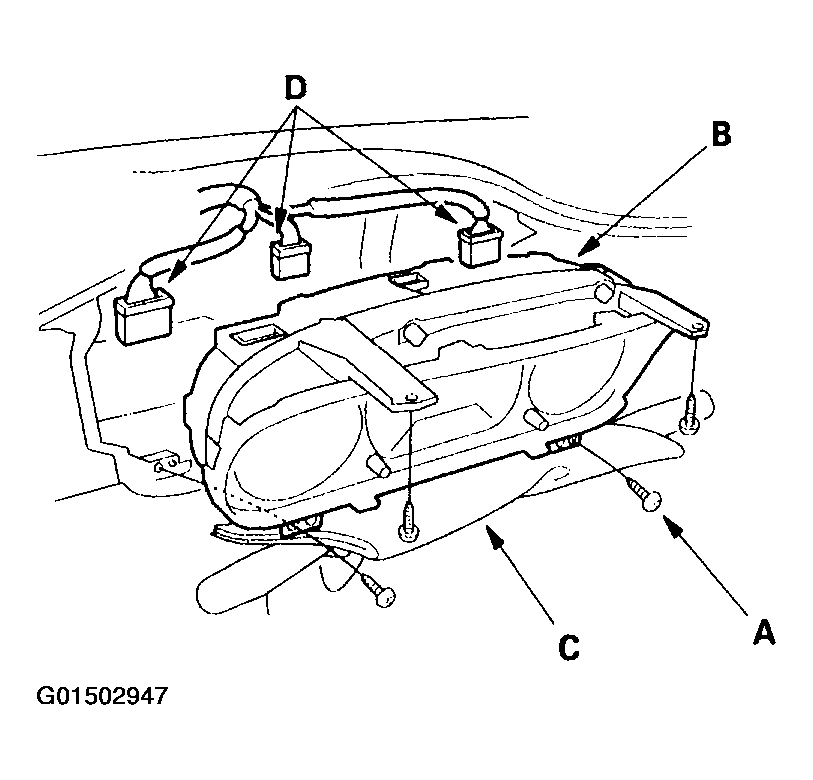

    Fig 1: Removing Screws From Gauge Assembly
    G01502947Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connectors (D), and remove the gauge assembly.
  4. Install in the reverse order of removal.
