Instrument Panel Removal/Installation
NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Take care not to scratch the dashboard and related parts.
- Remove these items:
- Driver's switch panel (see Driver's Switch Panel Removal/Installation )
- Center panel (see Center Panel Removal/Installation )
- Tilt the steering column down.

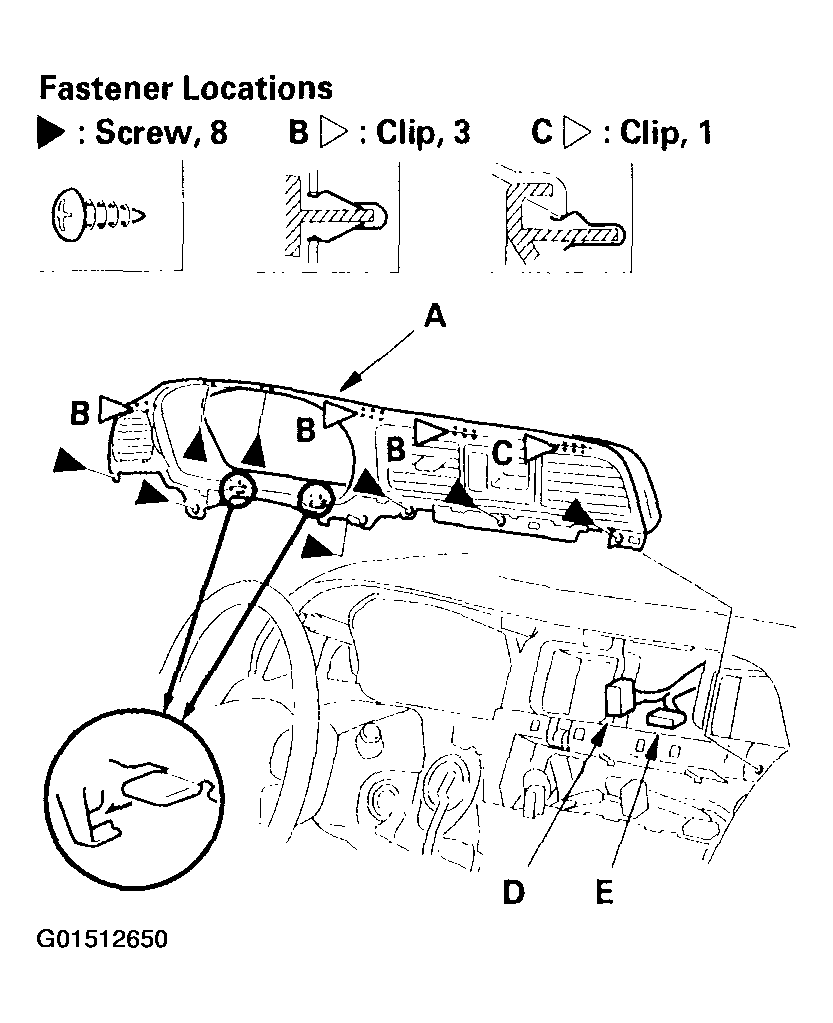

- Remove the instrument panel (A).
- 1 Remove the screws.
- 2 Gently pull out along the top to release the clips (B, C).
- 3 Disconnect the hazard warning switch connector (D) and clock connector (E). With navigation system, disconnect the climate control unit connector.
- Install the instrument panel in the reverse order of removal, and note these items:
- Make sure each connector is plugged in properly.
- Push the clips into place securely.
