Power Converter Wire Harness

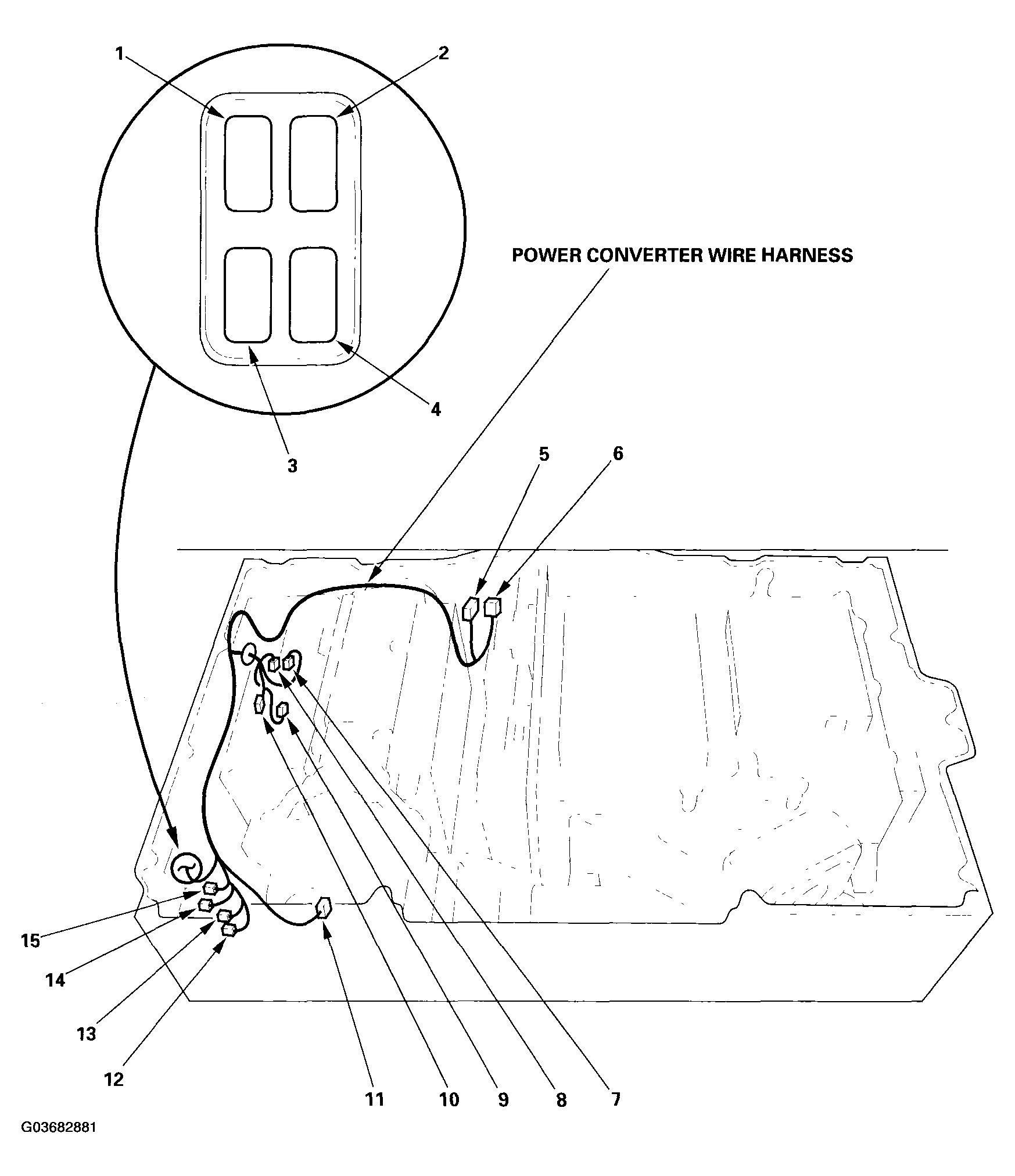

CONNECTOR TO HARNESS INDEX (POWER CONVERTER WIRE HARNESS)
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| High speed motor power inverter (MPI) module fan control relay | 3 | 4 | Left side of IPU | ||
| High speed motor power inverter (MPI) module fan control resister connector A | 12 | 1 | Left side of IPU | ||
| High speed motor power inverter (MPI) module fan control resister connector B | 13 | 1 | Left side of IPU | ||
| High voltage contactor control relay | 1 | 4 | Left side of IPU | ||
| Ignition hold relay | 4 | 4 | Left side of IPU | ||
| Low speed motor power inverter (MPI) module fan control relay | 2 | 4 | Left side of IPU | ||
| Low speed motor power inverter (MPI) module fan control resister connector A | 14 | 1 | Left side of IPU | ||
| Low speed motor power inverter (MPI) module fan control resister connector B | 15 | 1 | Left side of IPU | ||
| Motor power inverter (MPI) module fan | 11 | 2 | Left side of IPU | ||
| U phase motor current sensor | 9 | 3 | Left side of IPU | ||
| Voltage converter module | 8 | 16 | Left side of IPU | ||
| V phase motor current sensor | 7 | 3 | Left side of IPU | ||
| W phase motor current sensor | 10 | 3 | Left side of IPU | ||
| C551 | 6 | 10 | Middle of IPU | IPU compartment wire harness (see IPU COMPARTMENT WIRE HARNESS ) | |
| C552 | 5 | 24 | Middle of IPU | IPU compartment wire harness (see IPU COMPARTMENT WIRE HARNESS ) |
