Parking Brake: Check

  1. Pull the parking brake lever (A) with 196 N (44 lbs.) of force to fully apply the parking brake. The parking brake lever should be locked within the specified number of clicks (B). See Fig 1 .
  2. Adjust the parking brake if the lever clicks are not with in the specifications. See Adjustment  .

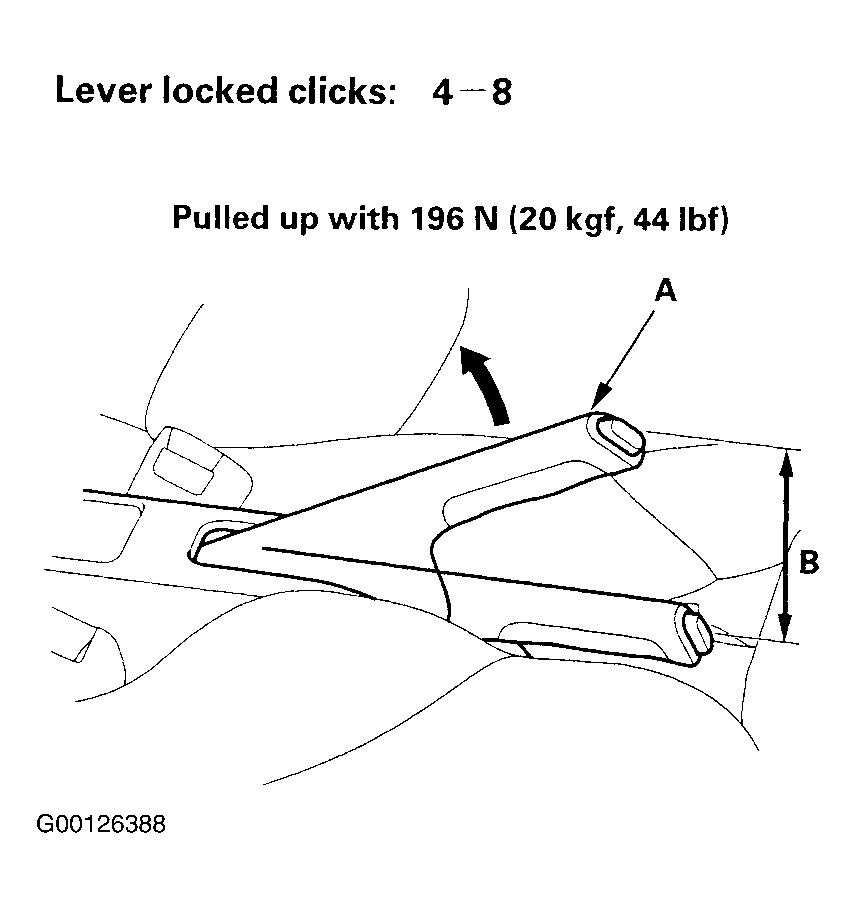

Fig 1: Checking Parking Brake Lever
G00126388Courtesy of AMERICAN HONDA MOTOR CO., INC.
