DTC P0201 - P0204: Injector Circuit Malfunction - Cylinders No. 1-4: Notes

WARNING: This page is about a different car, the 2000 Isuzu Rodeo and 2000 Isuzu Amigo. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use illustration for circuit reference. See Fig 1.

NOTE: DTC P0201 refers to cylinder No. 1, P0202 to No. 2, P0203 to No. 3 and P0204 to No. 4.

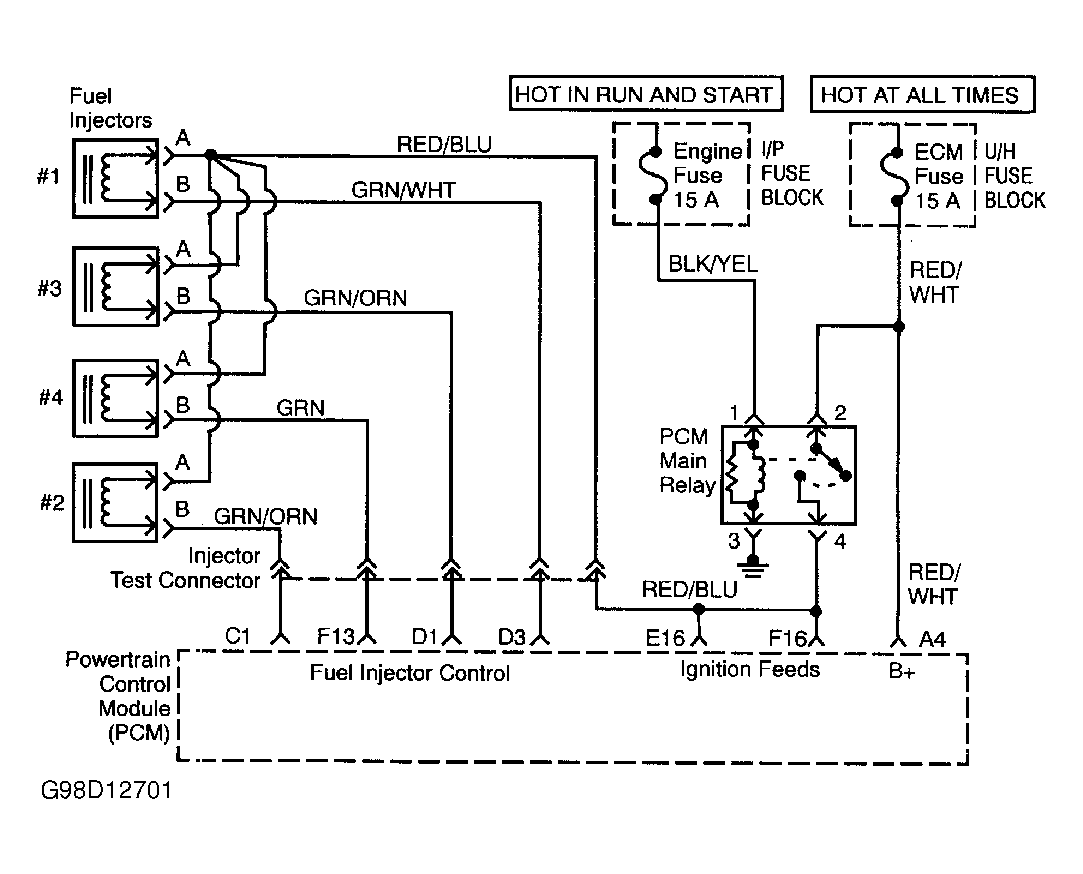

Fig 1: Identifying Fuel Injector Control Circuit

Courtesy of ISUZU MOTOR CO.
