Action Taken
DERM turns on INFLATABLE RESTRAINT indicator light.
NOTE:

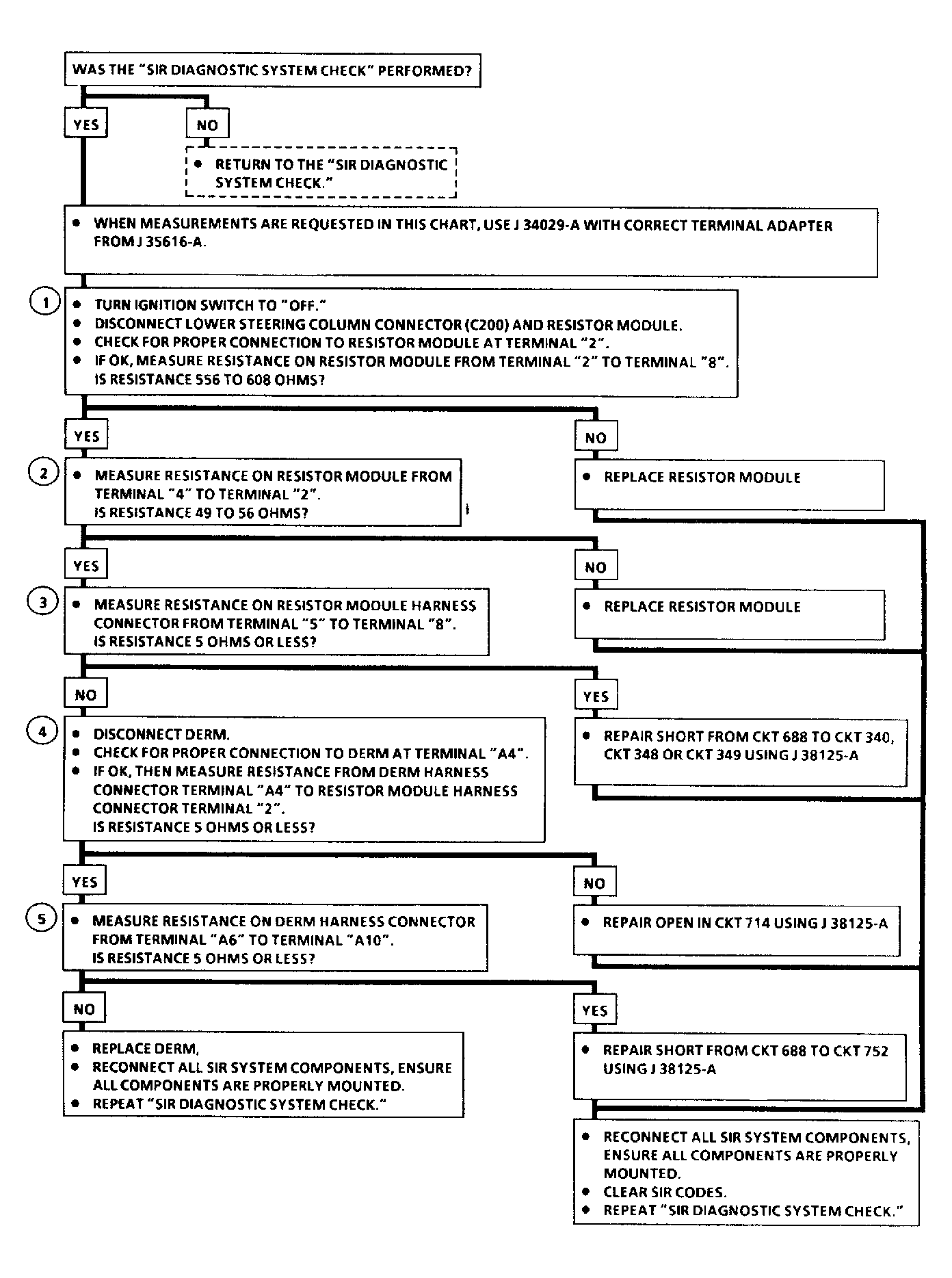

Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS
.
- Checks integrity of 49.9-ohm resistor, 100-ohm resistor, 430-ohm resistor, and associated circuitry in resistor module.
- Checks for open in FORCE HIGH resistor circuitry in resistor module.
- Checks for a short from FORCE LOW circuit No. 688 to circuit No. 340, 348 or 349.
- Checks for an open in FORCE HIGH circuit No. 714.
- Checks whether fault is caused by a short from FORCE LOW circuit No. 688 to SENSE LOW circuit No. 752, or a faulty DERM.
