Air Bag Restraint System
>>
Wiring Diagrams
Wiring Diagrams

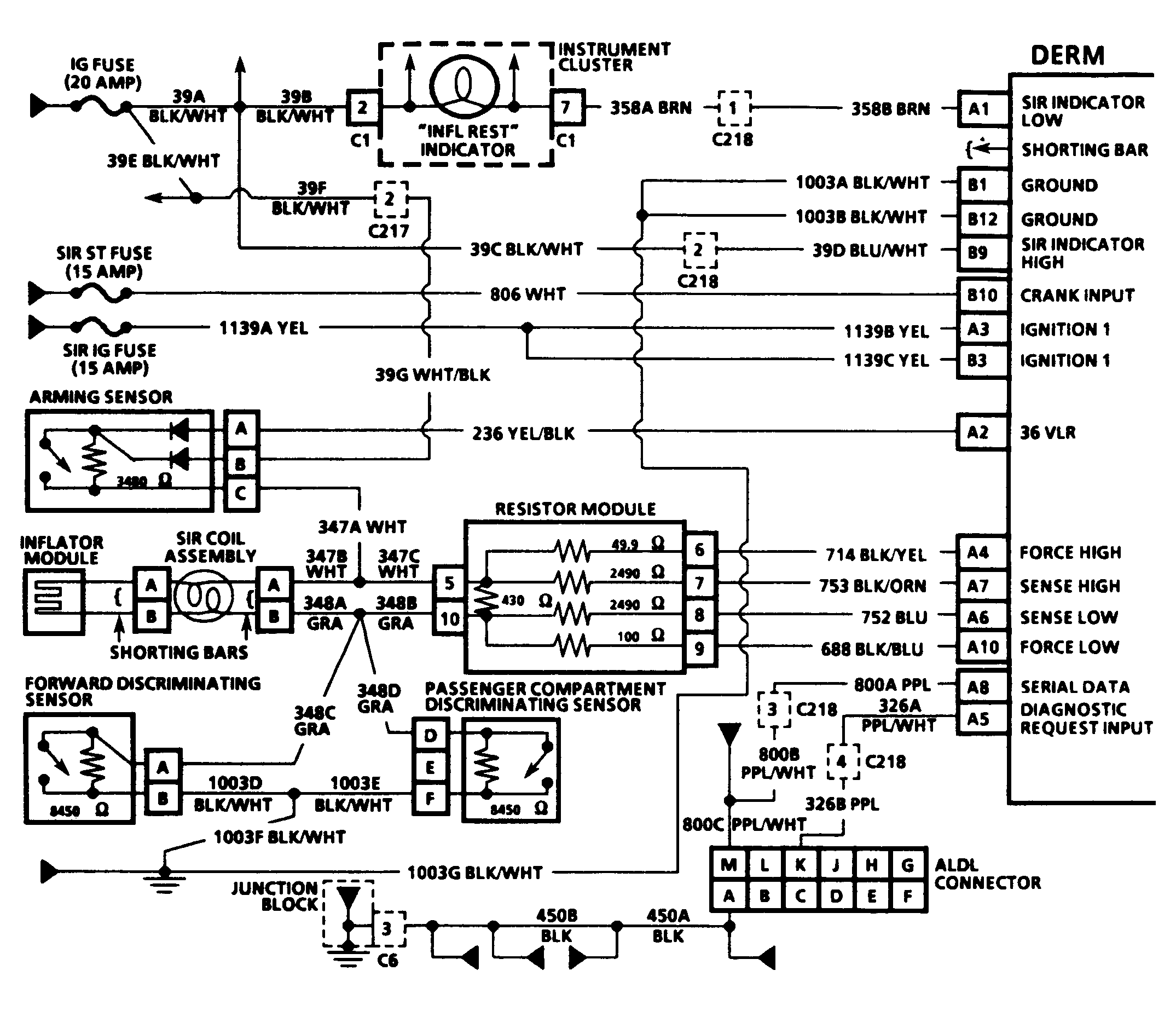

Fig 1: SIR System Wiring Diagram (Metro)
Courtesy of GENERAL MOTORS CORP.

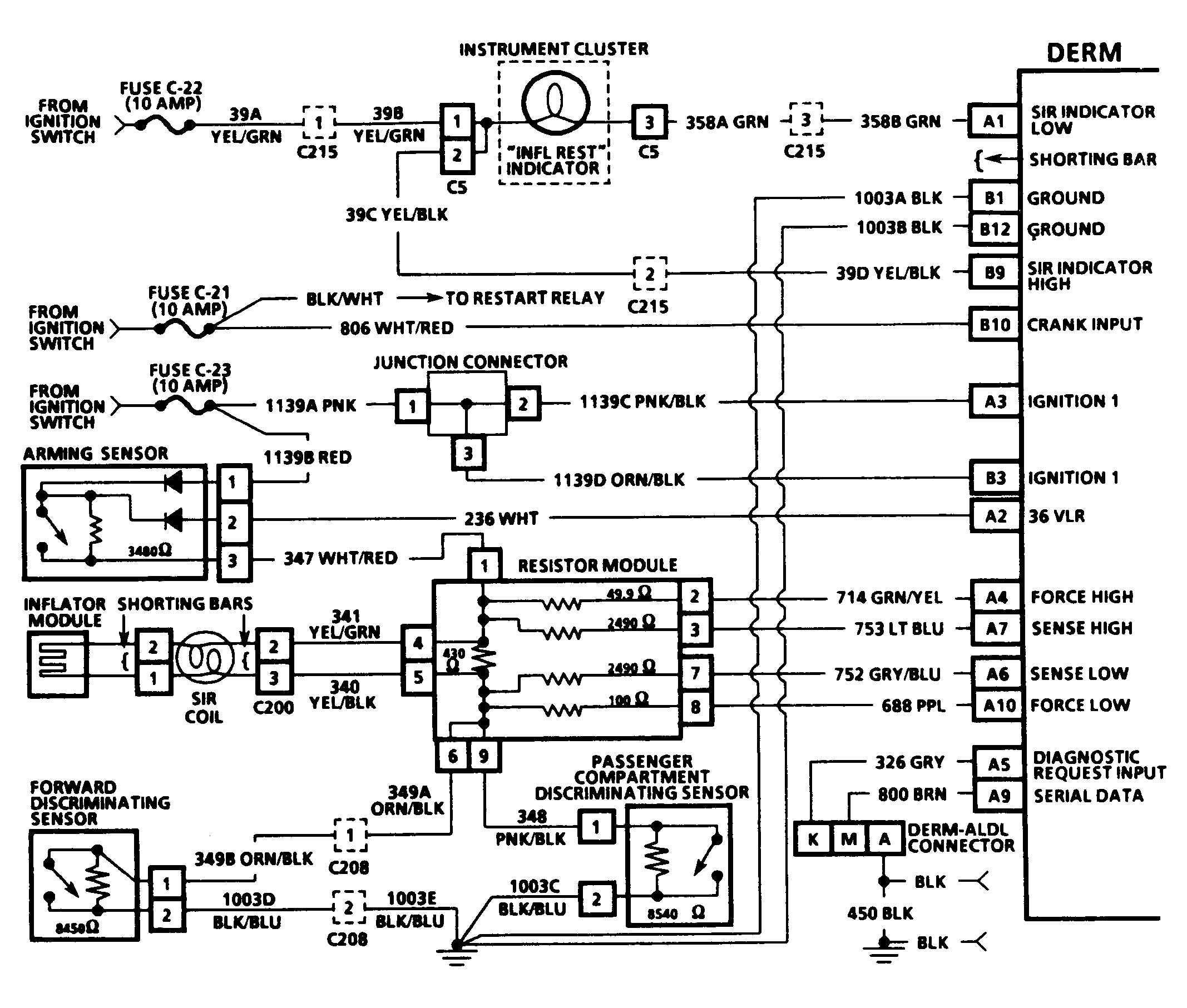

Fig 2: SIR System Wiring Diagram (Storm)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
