Action Taken

DERM turns on INFLATABLE RESTRAINT indicator light.

NOTE: Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS  .
  1. This test determines whether fault is in steering column or deployment loop.
  2. Checks for a short to voltage in circuit No. 347.
  3. Determines if fault is short to voltage on circuit No. 341.
  4. Checks whether steering column fault is due to short to voltage in inflator module wiring or in SIR coil assembly wiring.
  5. Checks for a short to voltage in circuit No. 340.
  6. Checks for a short to voltage in circuit No. 349.
  7. Checks for a short to voltage in circuit No. 348.
  8. Checks for a short to voltage in FORCE LOW circuit No. 688.
  9. Checks integrity of 100-ohm resistor and associated circuitry in resistor module.

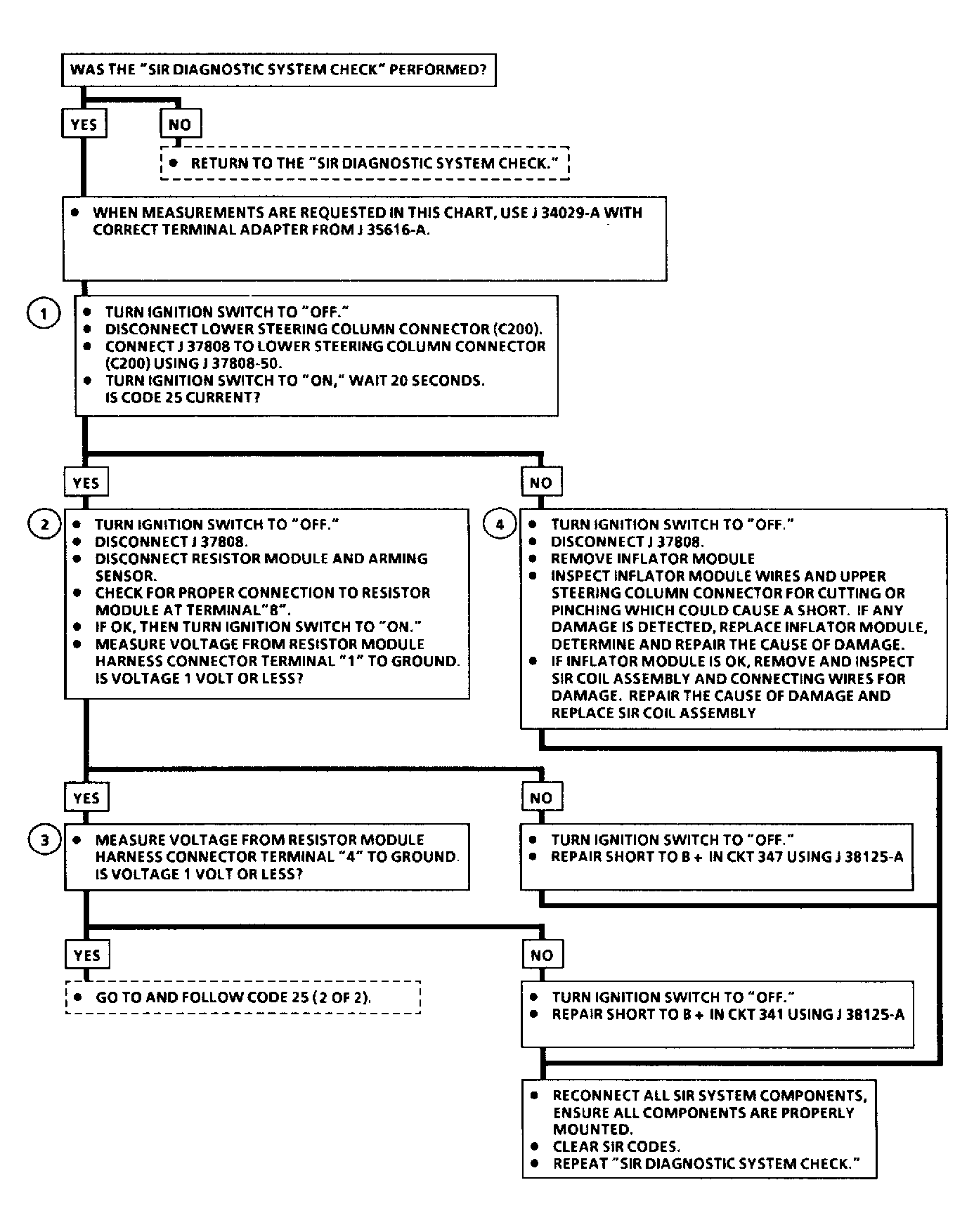

Fig 1: CODE 25 (1 of 2), Short to Battery in Steering Column
G92I24719Courtesy of GENERAL MOTORS CORP.

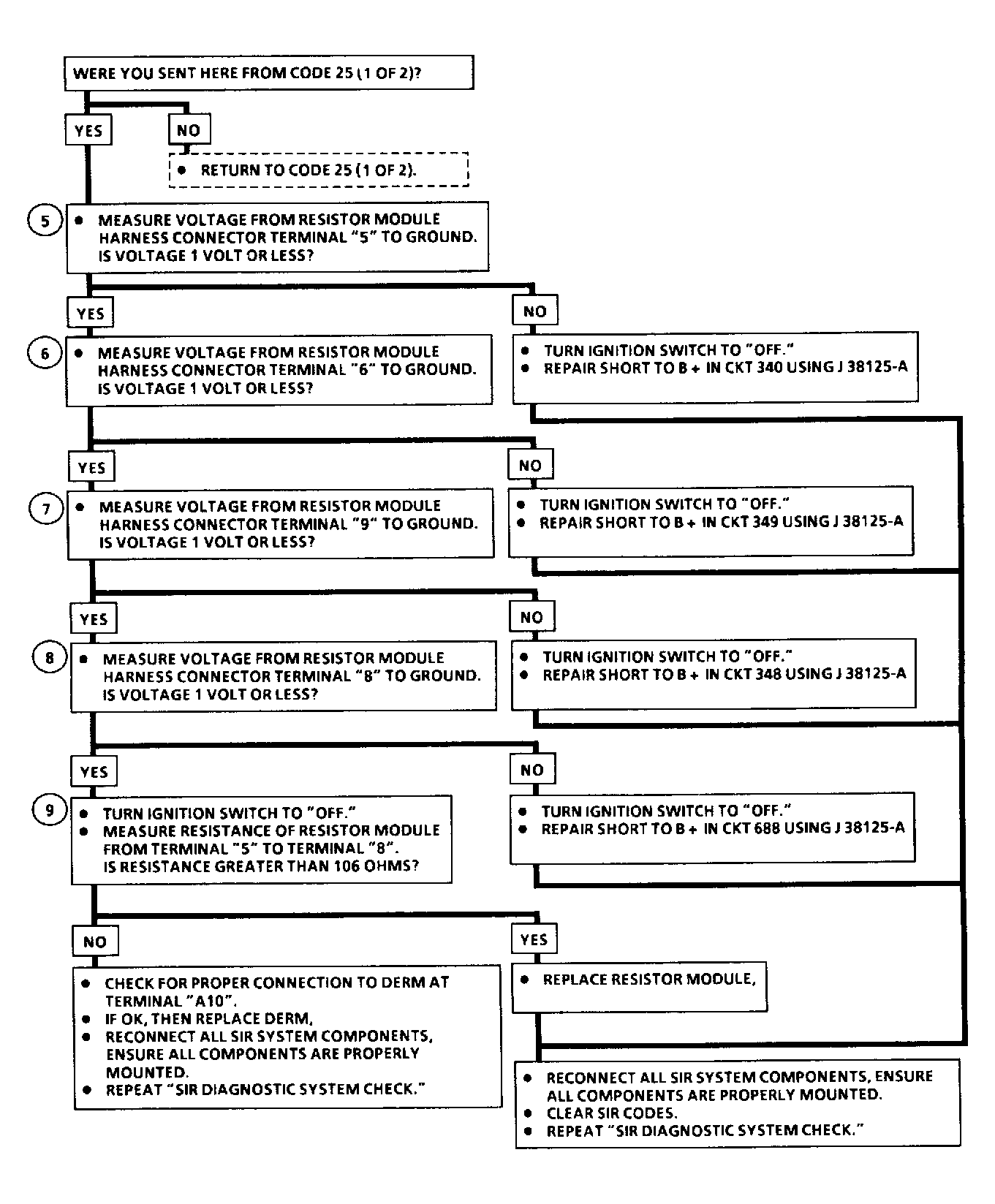

Fig 2: CODE 25 (2 of 2), Short to Battery in Steering Column
G92B24720Courtesy of GENERAL MOTORS CORP.
